ZMUX-300 is interface modular design, and supports very flexible configuration, according to the customers’ requirement. The business interface module is a single card, to meet the needs of customers. It adopts 1U height standard 19inch rack mountable case, easy to install and maintain. The device has indicator light, which can show the operating status of the equipment. It satisfies the unified access and transmission of 64K narrowband services and broadband data services, and has stable and reliable performance. The device is widely used in electric power, military, maritime, railway, mining, oilfield, government, group companies, etc and get good feedbacks from clients.

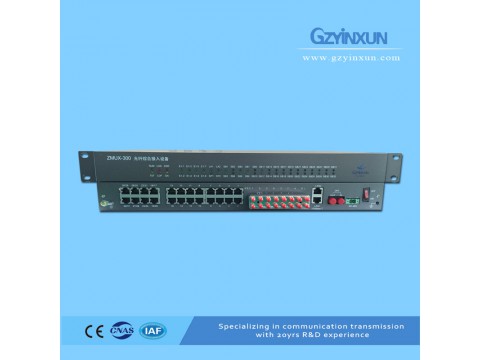

ZMUX-300 diagram
| Interface NO. | Interface Name | Instruction |
|---|---|---|
| ① | link interface | 1 channle fiber interface, optional: single or daul fiber, single-mode or multimode, SC or FC, 40km or 80km or 100km. |
| ② | User interface | 100M Ethernet interface (optional, 2channels 100M sharing bandwidth) |
| ③ | User interface | 2*4 E1 interface (optional, 2M interface) |
| ④ | User interface | 16 channels general service interface (optional: voice calls, 2/4W audio, 2/4W E&M, RS232/422/485 and other modules） |
| ⑤ | User interface | 16 channels service interface (1 RJ45 with 2 interface, optional: voice calls, 2/4W audio, RS232/422/485 and other modules) |
| ⑥ | Power supply interface and Switch | -48V DC power supply plug (green), power switch (red). |
| ⑦ | Ground terminal | The equipment grounding |
| ⑧ | System indicator | Equipment alarm indicator lights, running lights. |
* 1-32 service interfaces,1 port Ethernet(2channel 100M sharing bandwidth) and 2*4E1,1 module corresponding to 1 channel user interface, customize requirements
*支持FXO / FXS / HOT / MAG / 4WEM / 2WEM / G.703 / RS232 / RS422 / RS485 / V.21 / V.22 / V.23 / V.34 / V.35 / CAN / ADS-B雷达/ VHF /同步雷达数据/气象自包含数据/传输数据/气象雷达数据/盲注数据等
* 1通道光纤接口，双光纤/ FC / 40KM（单光纤/双光纤/单模，/多模/ SC / FC，40km / 80km / 100km可选）
*传输距离：40KM / 80KM / 100KM
*灵活的配置和扩展
*支持多 PCM 多路复用器连接
*支持E1的75Ω或125Ω可选
*支持高阻抗录音
* AC220V / DC-48V / AC220V + DC-48V
ZMUX-300是银讯公司自主研发的产品，我们已经大量出口到海外。它是非常稳定可靠的国际标准。我们支持ODM，OEM，技术合作
