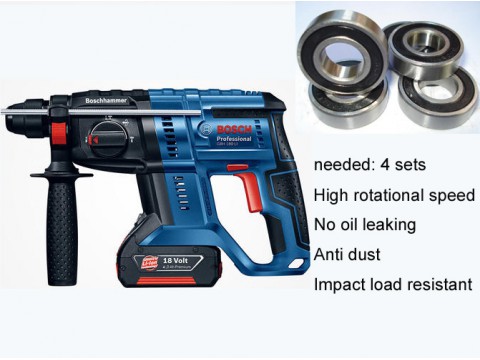

Bearing for electric breaker 698 ZZ C3 P5 HG08（-40~200℃）
Click image to view original image
Price: Negotiable
Min.Order: 1000
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2020-02-09 18:23
Hits: 60448
Enquiry
Company Detail


Details







Technical Parameter
Axial clearance  C3 Max Speed 37,000 rpm
Bore diameter 8mm Operating temperature  -40℃～200℃
Outer diameter 19mm Dynamic load rating 1.99KN
Outer ring width 6mm Static load rating 0.865KN
Inner ring width 6mm Inner ring material GCr15
Minimum assembly chamfer 0.3mm Outer ring material GCr15
Net weight 0.0073kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 1000pcs Seal ring material SPCC
