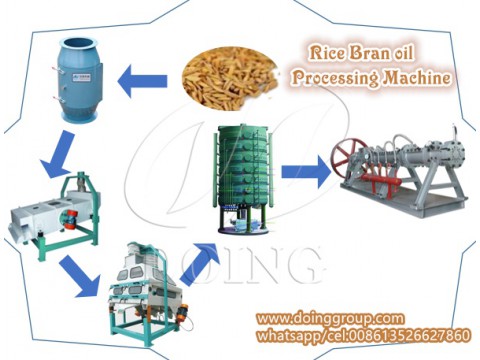

---Introduction of 30-100tpd rice bran oil production machine---
The whole rice bran oil production machine contains three workshops: rice bran oil pretreatment and pressing machine, rice bran oil solvent extraction machine and rice bran oil refining machine. You can purchase a single rice bran oil press machine or build your own rice bran oil processing plant of whole line.
---Pretreatment and pressing machine of rice bran oil production machine---
Rice bran oil pretreatment machine and oil presser
The simple processing of oil pretreatment includes pressing, high temperature pressing, cold pressing (less than 70 degrees) etc.
1.
Formal oil pressing can adopt one time or twice pressing of oil seeds.
It is applicable for low capacity required oil processing oil plant.
2.
High capacity oil seeds pretreatment and oil pressing equipped with oil
extraction treatment, is used in high capacity and large-scale oil
pressing plant, or high oil content oilseeds processing plant.
3.
Oil prepressing can get up 70% oil fat of embryo, and residual oil
inside pre-pressed cake can be extracted by organic solvent.
---Solvent extraction machine of rice bran oil production machine---
Rice bran oil solvent extraction plant and working process
The rice bran oil solvent extraction process requires for extraction cake, steam, water, electricity etc:
1. Moisture of extraction material: 5-8%;
2. Temperature of extraction material: 50-55°C;
3. Oil content of extraction material:14-18%;
4. Thickness of extraction cake: less than 13mm;
5. Powder porosity of extraction material: less than 15% (30 mesh);
6. Steam: more than 0.6Mpa;
7. Solvent: national standard No. 6 solvent oil;
8. Electric power: 50HZ 3*380V±10%
Electric lighting: 50HZ 220V ±10%;
9. Tempreture of supplement water: less than 25°C,
Hardness: less than 10.
10. Volume of supplement water: 1-2m/t raw material;
11. Temperature of recycle water: less than 32°C.
---Refining machine of rice bran oil production machine---
Crude oil → degumming and deacidification→ decolorization →deodorization → refined oil
1. Degumming and deacidification: The gumming is moved by phosphoric acid and hot water. There are two ways to move the acid in the crude cooking oil.
2. Decolorization: This step is used to adjust the color of the oil. You can control the color of the cooking oil according to the requirement of your market.
3. Deodorization: The function of this step is to move the special smell in the oil.This is an important standard for refined cooking oil.
1-10tpd rice bran oil refienry plant 3D picture
