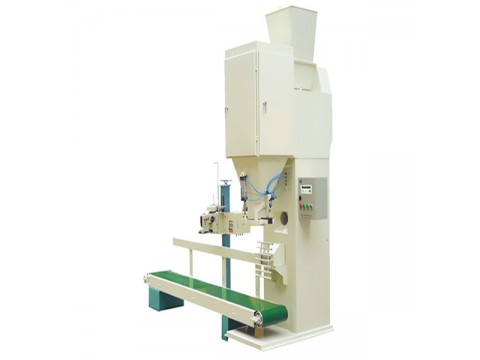

                        Weighing and Packaging Scales



Single scale

DLB type Weighing and packaging scales is a new generation of automatic packaging machines developed by our company. It is mainly composed of four parts: automatic weighing device, conveying device, packaging device, and computer control. Fast weighing, high measurement accuracy, occupy a small area, and easy operation.

Double scale

It adopts the dual-scale system, adjusts the dosage system, which can be used alternately or synchronously with high working efficiency.

Features

1. Independent hanging weighing sensor, stable information transmission and high weighing accuracy.

2. Adopting advanced frequency conversion technology, fast response speed, strong anti-interference ability, smooth movement, and automatic error compensation and correction functions.

3. Infrared sensor with fast pneumatic actuator, fast response.

4. The LCD touch screen displays the operation interface, and the parameter modification is convenient and flexible.

5. The host computer, conveyor belt, sewing machine, and controller are networked. The humanized operation design greatly reduces the labor intensity.

6. Group productivity, daily productivity and the cumulative amount of packaging will be saved automatically.

Technical Parameters
Name Name Model Power (kw) Packing
capacity/h
Weighing
Scope/kg
Error rate Scale value Size L×W×H
(mm)
Weighing and packaging scales Single scale DLB-50A 1 ≧300 5-50 0.1%FS 20g 3000×1500×300
DLB-100A 0.74 ≧300 10-100 0.1%FS 20g 2750×900×3550
Double scale DLB-100S 0.74 ≧300 20-100 0.1%FS 20g 3000×1000×389
