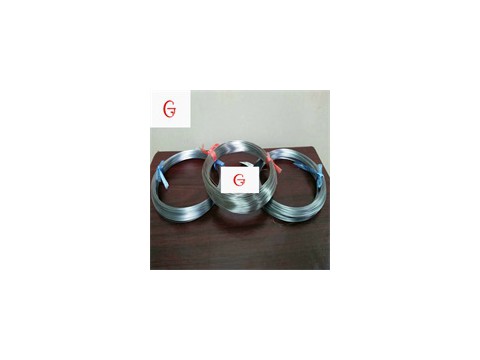

Tungsten Rhenium Thermocouple Wire
Product Name: WRe3-WRe25; WRe5-WRe26;WRe5-WRe20
Index Number: WRe3-WRe25 (Type D); WRe5-WRe26 (Type C); WRe5-WRe20 (Type A)
Production Grade,Specification,Temperature Range,Deviation:
Thermoelectromotive Tolerance for Type D,Type C
|
Grade |
Specification (mm) |
Temperature Range (℃) |
Deviation |
|
Ⅰ |
Φ0.08；Φ0.1 |
1500-1800 |
±0.125%t℃ |
|
Φ0.5 |
400-2315 |
±0.5%t |
|
|
Ⅱ
|
Φ0.08；Φ0.1 |
1500-1800 |
±0.25%t℃ |
|
Φ0.5 |
400-2315 |
±1%℃ |
Thermoelectromotive Tolerance for Type A
|
Grade |
Specification (mm) |
Temperature Range (℃) |
Deviation |
|
Ⅰ |
Φ0.5 |
400-2500 |
±0.5%t |
|
Ⅱ |
Φ0.5 |
400-2500 |
±1%t |
