Quick Information
- Brand Name:FosterLaser
- Place of Origin:China
- :
Description

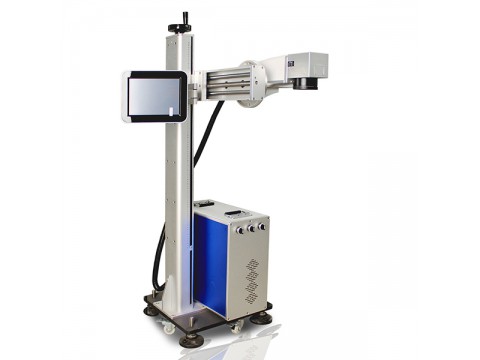

Flight Laser Marking Machine
Type: FST-20/30/50
Power: 10W/20W/30W/50W
Laser wavelength: 1064nm
Marking depth: ≤1.2mm
Marking speed: 800 standard characters/second
Description:
• The laser output power is stable and the spot quality is good
• The marking speed is 2 - 3 times that of the traditional model
• Over - long life, up to more than 100,000 hours
• No operating system restrictions, easy operation, fully dosed optical path, stable, reliable and maintenance - free
• No pollution, no noise, no consumables. Power consumption is 5 % - 10 % of that of traditional models
• Overcomes the weakness of laser with high anti-material damage and can mark all metals
• Ultra - fine with 2540 dpi resolution.
Parameter:
| Type | FST-20/30/50 |
| Power | 10W/20W/30W/50W |
| Laser Wavelength | 1064nm |
| Q-frequency | 20KHZ - 100KHZ |
| Optional Marking Area | 100mm*100mm / 150mm*150mm/200mm*200mm / 300mm*300mm |
| Marking Depth | ≤1.2mm |
| Marking Speed | 800 standard characters/second |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100 000hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling Mode | Air cooling--Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Machine Dimension/after package | 650mm*210mm*550mm/880*420*700mm |
| Net Weight/gross weight | 30KG/53kgs |
| Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |
Factory:
Certification:
Service:
Pre-sale service:
Before the machine is shipped,we will complete the installation of the machine and commission it to the best working condition. You can use it directly after receiving the machine.If necessary,we have professional after-sales to provide you with machine support.
After-sale Service:
The whole machine warranty for one year(except the laser tube and mirrors lens).Any questions,24 hours online professional advice available.
FAQ:
1. How can I choose the most suitable machine?
Please tell us three questions, our customer service staff will recommend the most suitable product for you.
1) Which material is mainly used for? Cutting, engraving or marking?
2) What is the max thickness of the cut?
3) How big working area you need?
2. How long can deliver the machine?
Common machine can be delivered within 3~7 days. Custom-made machine needs 12~14 days.
3. Is there any after-sales service?
Yes, we have a perfect after-sale service team to supply technical support to our customers.
Our technicians can assist you to install the machine and give you free training after you receive machine.
Price
- Delivery Port :Qingdao
Packaging & Delivery
- Packing :According to customer requirements
- Delivery Lead Time :7-15 Days
- Supply Ability :500sets/month
