Quick Information
- Brand Name:FosterLaser
- Place of Origin:China
- :
Description

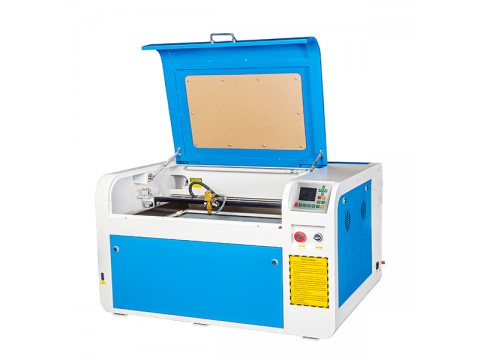

FST 6040-ruida Laser Engraving Machine
Model: FST-6040
Laser type: sealed CO₂ glass laser tube
Laser power: 40W/50W/60W/80W/100W
Engraving speed: 0-30000mm/min
Cutting speed: 0-3600mm/min
Cutting thickness: 0-20mm ( depends on materials)
Resolution rate: ±0.05mm
Description:
1) Adjustable Speed and Power, Smooth and Precise Engraving and Cutting.
2) USB Interface, U-Disk(offline), Ethernet cable, WIFI (Optional parts)
3) Air Assist, Remove heat and combustible gases from the cutting surface.
4) Embedded Exhaust Fan, Easier install, Safer transport.
5) Rotary Axis, Engrave any cylindrical object. (Optional parts)
6) Aluminum Knife Worktable or Honeycomb Worktable.
7) Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8) Water Cooling and Protection System.
9) Red light positioning.
10) Emergency Stop Button.
11) Larger Size, 400*600mm working area.
12) The lifting platform is electric control.
13) Drag - and - chain transmission line.
14) Laser focal length: 5CM.
Parameter:
Model | FST-6040 |
Working area | 400*600mm |
Laser type | sealed CO₂ glass laser tube |
Laser power | 40W/50W/60W/80W/100W |
Working Platform | Aluminum Knife Worktable or Honeycomb Worktable |
Engraving speed | 0-30000mm/min |
Cutting speed | 0-3600mm/min |
Cutting thickness | 0-20mm ( depends on materials) |
Resolution rate | ±0.05mm |
Data transfer interface | USB2.0、U-Disk、Ethernet cable、WIFI(Optional parts) |
Working voltage | 220V±10% 50HZ ,110V±10% 60HZ |
Min shaping character | Character: 2*2mm letter: 1*1mm |
Supported graphic formats | BMP PCX TGA TIF PLT CDR |
Controlling software | RD works |
Working temperature | 0-45°C |
Working humidity | 5%-90% |
Rsolution ratio | <4500DPI |
Optional parts | Rotary Axis,Water Chiller |
Warranty | The whole machine 1 year (except the laser tube and mirrors lens ) |
Package | Plywood |
