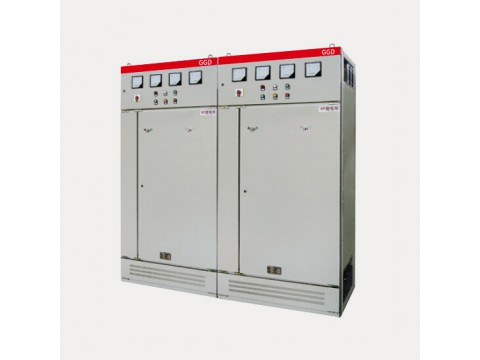

GGD1 Low-voltage Fixed Switchgear

GGD1 Low-voltage Fixed Switchgear

Overview
GGD type low-voltage fixed type switchgear is suitable for power users in power plants, substations, industrial and mining enterprises, etc. as power, lighting and power distribution equipment in the distribution system of AC 50Hz, rated working voltage 380V, rated current to 3150A. Conversion, distribution and control. The product has high breaking capacity and rated short-time withstand current of 50kA. The circuit scheme is flexible, the combination is convenient, the utility is strong, and the structure is novel. This product is one of the representative products of assembled and fixed area switchgear in China. This product complies with: GB7251 "Low-voltage switchgear and control equipment", IEC60439 "Low-voltage switchgear and control" and other standards.
Normal use condition

1. The installation and use location does not exceed 2000m above sea level;

2. The temperature of the surrounding medium is not higher than +409C, not lower than -5 °C, and the average temperature of 24h does not exceed +35 °C;

3. The indoor relative humidity does not exceed 90% (at a temperature of 25 ° C);

4. There is no conductive dust and a place sufficient to corrode metals and destroy insulating gases;

5. Locations where there is no fire or explosion hazard;

6. There is no place where the vibration and bumps are severe and the vertical inclination does not exceed 50;

7. If there are special conditions of use, please declare at the time of ordering and the manufacturer.

Product model and meaning
