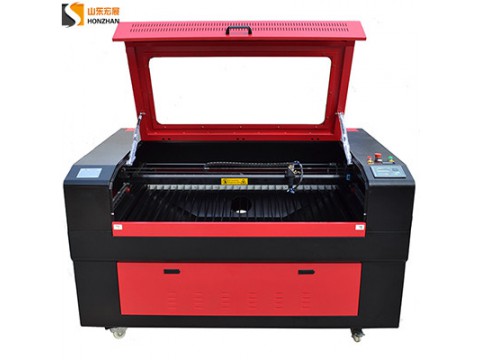

Click image to view original image
1. Machine features:
1). Simple and convenient operation, saving labor time, can do engraving and cutting functions, high efficiency.
2). The engraving precision is high, the material will not be deformed, the cutting effect is completely consistent.
3). Good cutting effect: CO2 sealed glass laser tube, with no-water alarm protection, smooth cutting, no need for secondary processing of cut surface, can support a variety of software formats.
2. Applicable Materials:
Applicable materials: It can be used for non-metallic materials such as leather, wool, fur, acrylic, plexiglass, wood, plastic, rubber, ceramic tile, crystal, jade, bamboo, granite, marble, epoxy.
Applicable industry: suitable for non-metal template cutting industry such as garment leather, template cutting, packaging printing, advertising decoration, architectural decoration, computer embroidery cutting, handicrafts, acrylic sheet in plastic industry etc.
3. Technical Parameters:
Model
HZ-1390
Work area
1300mm*900mm
Work table
Blade platform, optional honeycomb table
Laser tube power
80W, Optional 100W 130W 150W
Laser tube type
CO2 laser tube, Optional Reci laser tube
Laser tube cooling
Water cooling
Service time of tube
1500hours for CO2 laser tube; 10000 hours for Reci laser tube
Control board
Ruida control board and operate panel
Engraving speed
0 - 60000mm/min
Cutting speed
0 - 30000mm/min
Location precision
<0.01mm
Cut thickness
0-10mm, (The thickness of cut is for reference, depending on the materials and clients’ cutting requirements )
Data Transfer Interface
USB, optional DSP controller
Power supply
AC 220V, 50HZ / AC110V, 60HZ
Min. shaping character
English word: 1mm*1mm
Software supported
Artcut, CorelDraw, AutoCAD , PhotoShop
Supported graphic
BMP, PLT, DST, DXF, JPG, TIF
Driving system
Stepper motor
