Non-metal materials such as double color board, Plexiglas,glass, bamboo and wood, rubber, stone, marble, granite and tiles, fabric leather etc.
Applicable industry:
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
2. Machine features:

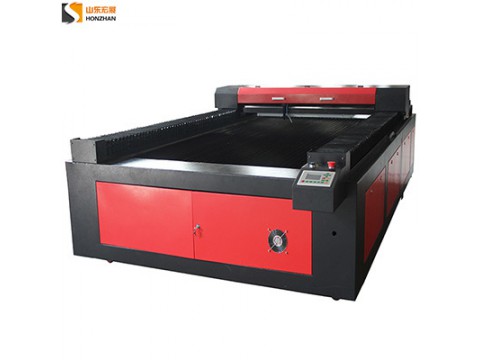

1). Honzhan HZ-1325 Laser machine has a big cutting area like 1300x2500mm. We can also customize the different sizes according to customers' requests.
2). If you want to both engrave and cut, we can equip TWO Co2 laser tubes, one is low power like 80W for engraving,the other is more than 130W for cutting.
3). High precision mechanic structure design, the data control is stable. Adopt imported linear guide, more stable and higher accuracy.
Model
HZ-1325
Working area
1300mm*2500mm
Work table
Blade table, optional honeycomb table
Laser tube power
80W, Optional 100W, 130W, 150W
Laser tube type
CO2 laser tube, Optional Reci laser tube
Laser tube cooling
Water cooling
Control board
Ruida control board and operate panel
Engraving speed
25-25000mm/min
Cutting speed
50-10000mm/min
Location precision
<0.01mm
Cut thickness
0-20mm, (The thickness of cut is for reference, depending on the materials and clients’ cutting requirements )
Data Transfer Interface
USB, optional DSP controller
Power supply
AC 220V, 50HZ / AC110V, 60HZ
Min. shaping character
English word: 1mm*1mm
Software supported
Artcut, CorelDraw, AutoCAD , PhotoShop
Supported graphic
BMP, PLT, DST, DXF, JPG, TIF
Driving system
Stepper motor, optional servo motor
