1). Furniture: wooden doors, solid wood furniture, tables, chairs, windows.
Plate-type furniture, custom furniture, office furniture, wooden cabinet wardrobe , closet door, MDF wood doors, craft wooden door, paint free door, TV cabinet, computer table, bedside table, shoe cabinet, wooden kitchen cabinet.

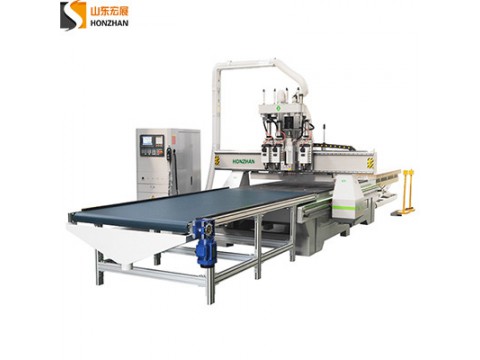

2. Triple spindle ATC CNC Router with auto feeding and unloading function Feature:
1). Highly automatic nesting solution with auto loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity.
2). Humanizing design of the machine control interface, very simple to operate, requiring only minimal training of operator, do not need specialized operation technical personnel, high efficiency.
|
Model |
HZ-ATC1325PT Triple spindle ATC CNC Router Center with Boring Head |
|
Working size |
1300*2500*200mm |
|
Traveling speed |
70m/min |
|
Cutting speed |
25m/min |
|
Spindle |
6KW Air cooling spindle, 24000rpm |
|
Boring head |
CC 9 boring head |
|
Control system |
Taiwan Syntec Control system, optional Shanlong windows control system |
|
Driving system |
Japanese Yaskawa servo motor and drive 850W |
|
Working voltage |
AC380v/3Ph/50Hz |
|
Electrical accessories |
France Schneider low voltage components |
|
Platform |
Auto loading and unloading platform |
|
Dust collector |
5.5KW double barrel dust collector, pushing secondary dust cleaning function |
|
Table structure |
Double-deck of Multi-point vacuum table |
|
Machine Weight |
4500KG |
