Suitable for advertising, photo frame making, double color board signs, department cards, badges and architectural models, ABS board, acrylic engraving and cutting, engraving of various jade articles, also can engraving aluminum, brass, marble and other items.

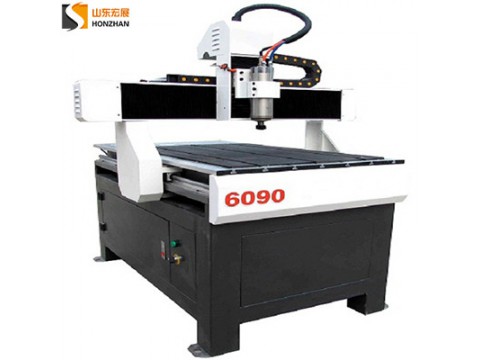

HZ-R6090 CNC Router machines are excellent choice for small shops and can work on many applications at a low price.
2. Features:
1). The gantry is sturdy and the bed structure is reasonable. The table top is stable during processing, the inertia is small, processing speed is fast, engraving precision is high.
2). Coupled with high-speed water-cooled variable frequency motor, high-performance subdivision drive, can work stably for a long time.
|
Model |
HZ-CNC6090 |
|
Working area |
600*900*100mm |
|
Spindle type |
Water cooled spindle |
|
Spindle power |
1.5kw, optional 2.2KW |
|
Spindle rotating speed |
0-24000rpm |
|
Power supply |
AC220, 50 HZ |
|
Worktable |
T-slot table, Optional vacuum table |
|
Max working speed |
8m/min |
|
Locating precision |
0.01mm |
|
Min shaping character |
Character:3x3mm, letter:2x2mm |
|
Operating temperature |
5 ℃-40 ℃ |
|
Working humidity |
30%-75%(without condensed water) |
|
Working accuracy |
0.025mm |
|
Control configuration |
NC studio control system, optional DSP, Mach3 |
|
Toolhold diameter |
Φ3.175，Φ6 |
