1). Wood Industry: A large area flat plate engraving , wood panel furniture carving, wood art murals, wood cabinet doors carving.
2). Wood Products Processing: Sewing machine table, electrical counter table, sports equipment.
3). Artwork: Photo frame, jewelry box. Musical Instrument Industry: Instrument three-dimensional surface engraving, shape cutting.
2. Machine Overview:

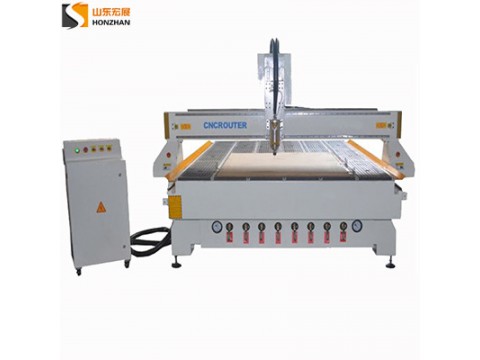

HZ-R2030V series is economical CNC router for woodworking, fulfilling the need for the production with most wooden materials.
Device use vacuum system and dust collector, convenience to work fast and efficiently.
3. CNC router configurations:
1). Working area: 2000mm*3000mm*200mm(X,Y,Z axis), we also accept customized size.
2). The machine has vacuum table, helps adsorption the materials, does not move, and maintains the accuracy of the engraving position. Particularly suitable for lightweight or large materials.
|
Model |
HZ-R2030V |
|
Work area(X,Y,Z) |
2000*3000*200mm |
|
Spindle power |
3.2KW, Optional 4.5KW, 5.5KW, 6KW |
|
Spindle |
Water cooling spindle, optional air cooling spindle |
|
Machine structure |
Steel structure lathe bed, T-slot sectional materials |
|
Work holding |
vacuum and t-slot table top |
|
Vacuum pump |
5.5KW, optional 7.5KW |
|
Control Software |
Weihong NC Studio, optional RichAuto DSP controller |
|
Driving system |
Leadshine step driver DMA860, 450B motor |
|
Precision (mm) |
0.07 |
|
Positioning accuracy(mm) |
0.02 |
|
Repeatability (mm) |
0.02 |
|
Travel speed |
40m/min |
|
Processing speed |
20m/min |
|
Available tools(mm) |
φ3.175-φ12 |
