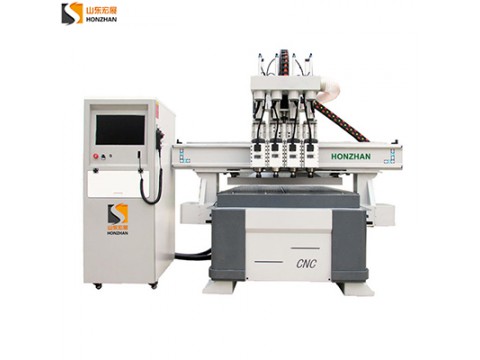

Click image to view original image
1. Application materials:
Plate-type furniture, custom furniture, office furniture, solid wood furniture, wooden cabinet wardrobe, cabinet door, closet door, MDF wood doors, craft wooden door, paint free door,
TV cabinet, computer table, bedside table, shoe cabinet, bookcase, entrance cabinet, display cabinet, medicine cabinet, wooden speaker, wooden kitchen cabinet, screen, craft window.
Applicable to many kinds of wood plates, automatic switching processing, high-speed intelligent cutting, slotting and drilling.
It can be used for large area MDF wood board and solid wood boards’ plane milling, engraving, hollowing, cutting, 3D relief etc diversified processing, wide range of uses, cost-effective.
2. Features:
1). Four process switching head, tool change process is uninterrupted, the automatic tool change program can process the product in large quantities, automatic execution without manual intervention.
2). High power 6Kw air cooling spindle have functions of carving, milling, drilling and cutting.
3). High precision Taiwan HIWIN or LAAK brand linear guide rail ensure machine work fast and smoothly.
Model
HZ-R1325F
Work area (X,Y,Z)
1300×2500×200mm (4×8×0.6ft)
Travelling speed
40m/min (max)
Working speed
20m/min (max)
Working voltage
AC380V/3PH/50HZ, optional 220V, 110V
Spindle power
Air-cooled 6KW×4
Spindle speed
18000 RPM×4
Device architecture
De-stressing and finishing milling, one molding process,
Anti-jamming independent cabinet, high structural stability and small deformation
Driving system
Leadshine servo motor and driving system, optional Delta, Japan Yaskawa
Operating system
ShenZhen Shanlong operate system with handheld, optional Taiwan Baoyuan, Taiwan Syntec windows control system
Transmission parts
Alloy hardened Rack and pinion, Taiwan LAAK linear rail and TBI Ball screw
Positioning method
High precision automatic positioning cylinder
Countertop structure
Vacuum table, with patch function, to ensure that small board not move
Inverter
7.5KW high precision inverter, optional Delta, Delixi brand
Lubrication system
Automatic Oil pump centralized lubrication control
