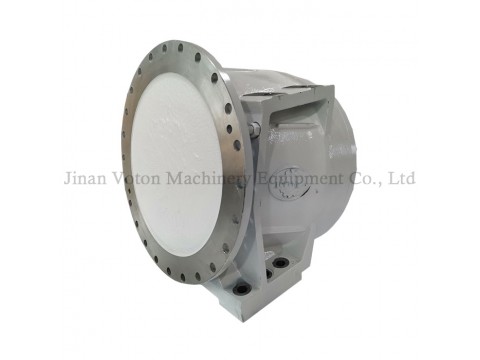

TOPUNIOn P/PK series reducers are suitable for concrete mixer trucks with a drum volume of 7-12 cubic meters. There are five models of P58, P68, P75, PK85, and PK95.
Among them, P58 and P68 are two-stage planetary reducers; P75 is a three-stage planetary reducer; PK85 and PK95 are "right-angle input" reducers-composed of a two-stage planetary reduction mechanism and a single-stage bevel gear input.
Advantage
1. The bearing is firm and reliable in quality
2. Secondary sealing to solve oil leakage
3. Right angle input, saving space
4. Leading design, classic transmission
5. Reliable products, all over the world
Technical Parameter
| Model | Max drum volume (m³ ) | Reducer spindle inclination | Output torque (Nm) | Reduction ratio (i) | Max input speed (rpm) | Weight (kg) | Lubricating oil volume (L) | Ambient temperature ( ℃ ) |
| P58 | 7 | 15° | 58000 | 99.9 | 2500 | 285 | 9.8 | -20-85 |
| 8 | 13° | |||||||
| P68 | 9 | 12° | 68000 | 102.8 | 298 | 10.2 | ||
| 10 | 11° | |||||||
| P75 | 9 | 12° | 70000 | 130 | 345 | 14 | ||
| 10 | 11° | |||||||
| PK85 | 9 | 12° | 75000 | 130 | 354 | 13 | ||
| 10 | 11° | |||||||
| PK95 | 10 | 12° | 80000 | 130 | 374 | 17 | ||
| 12 | 11° |
Due to technological progress, the parameters may change, please refer to the actual product.
