Lightweight and high tensile and tear strength,good abrasion resistance,high intensity,waterproof,UV Resistance,anti-mildew and fire resistance.

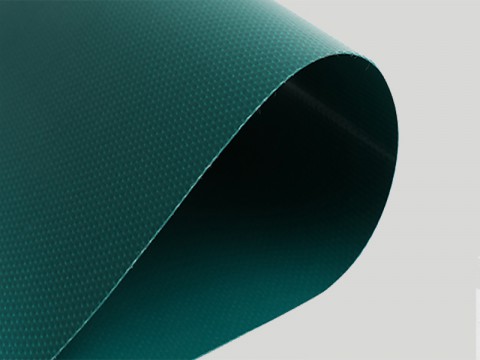

waterproof fireproof pvc fabric
|
base Fabric |
100% polyester |
DIN EN 60001 |
|
Total Weight(gsm/㎡) |
550gsm/㎡ |
DIN EN ISO 2286-2 |
|
Total Thickness(mm) |
0.44mm |
|
|
Tensile Strength(Warp/Weft)(N/5cm) |
2500/2200N/5cm |
DIN 53354 |
|
Tear Strength(Warp/Weft)(N) |
300/260N |
DIN 53363 |
|
Adhesion(N/5cm) |
>90N/5cm |
DIN 53357 |
|
Threshold Temperature |
-30℃/+70℃ |
DIN EN 1876-2 |
