Features:
-
High Output Drive Capability
20 V p-p Differential Output Voltage, RL = 50 Ω
10 V p-p Single-Ended Output Voltage while Delivering 200 mA to a 25 Ω Load -
-
-
-
High Speed
160 MHz, -3 dB Bandwidth (G = +2) 1600 V/s Slew Rate
Technical details:
the AD8017 is a low cost, high output current dual op amp optimized to run on a +12 V power supply. Available in a thermally enhanced 8 lead SOIC package, the AD8017 is optimized for driving the CPE end of the xDSL line, particularly for PC based modem designs. Novel circuit design enables each amplifier in the dual AD8017 to deliver 10 V pk-to-pk output voltage and more than 200 mA typical output current.
Breakthrough two stage current gain design on a high speed bipolar process technology means that the AD8017 can deliver low distortion output voltages to within 1 V of the power supply rail. the AD8017 consumes only 7 mA/Amp, setting the standard in high efficiency.
An evaluation board is available for this product and may be ordered using the following product number: AD8017AR-eval.
Lead free package option available (AD8017ARZ, AD8017ARZ-REEL).

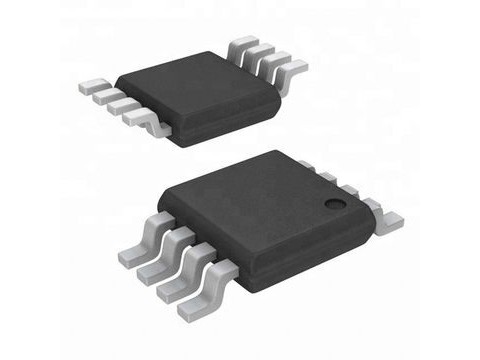

Package:
Delivery:
FAQ:
