Introduction

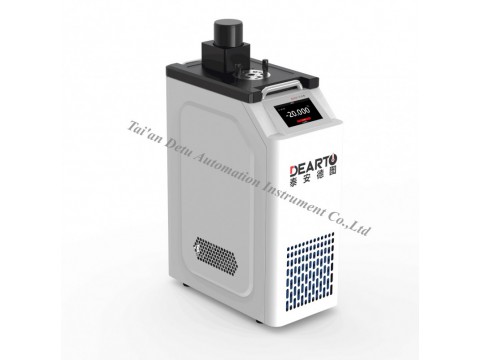

DTS-BE ultra-portable intelligent constant temperature oil tank is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The tank is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification / calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
Technical Parameters
|
Product name |
Intelligent mini cooling tank |
|||
|
Model |
DTS-10BE |
DTS-20BE |
DTS-30BE |
DTS-40BE |
|
Temperature range |
-10℃~150℃ |
-20℃~150℃/180℃ |
-30℃~150℃ |
-40℃~150℃/180℃ |
|
Control method |
Touch screen |
|||
|
Temperature fluctuation |
≤±0.03℃/10min（0℃） |
|||
|
Temperature uniformity |
≤0.06℃（0℃） |
|||
|
Heating rate |
6.5℃~11.5℃/min |
|||
|
Cooling rate |
5℃~10℃/min（20℃） |
|||
|
Display resolution |
0.001℃ |
|||
|
Work area size（mm） |
Φ60×280 |
|||
|
Dimensions（mm） |
420×215×610 |
|||
|
Working medium |
Special media |
|||
|
Features |
Small and portable, intelligent touch screen control, display temperature difference, fluctuation data; automatic segment temperature control, rapid temperature rise "zero" overshoot; micro-circulation technology, uniformity of temperature field. Multi-point temperature calibration. Temperature curve display, temperature data is automatically saved to U disk. Equipped with overheating protection, safe and reliable temperature limiting function, and RS-232 communication interface can be connected to the host computer. |
|||
|
Remarks |
Flange size can be customized according to customer needs |
|||
