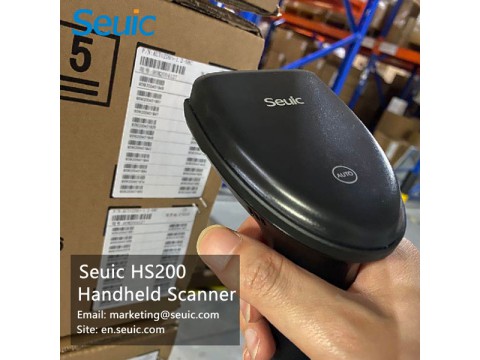

Seuic HS200 Scanner is a handheld 2D image scanner launched by Seuic for industrial manufacturing, which can quickly and efficiently read various types of barcodes. It is suitable for electronics stations of assembly, packaging and reliability testing, etc.
-----------------------------------------------------------
ConTACT US
Website:en.seuic.com
Mail:marketing@seuic.com
| Dimensions | 169(L)×69(W)×92(H) |
| Weight | 146g |
| Voltage and Current | 4.5VDC to 5.5VDC, 2.5W |
| Material | Highly resistant industrial palstic |
| User Indicators | LED indicator, beeper (adjustable tone and volume), haptic/vibration |
| Operating Temp. | 0 ºC~+50 ºC |
| Storage Temp. | -40ºC to +70ºC |
| Humidity | 5% to 95% RH non-condensing |
| Drop Specification | 50 rounds of 5.8 ft./1.8m drops across the operating temperature range |
| Tumble Specification | 2000 rounds of 0.5m tumble |
| Sealing | IP54 per IEC sealing specifications |
| ESD | ±15kV Air discharge, ±8kV direct discharge |
| Light Source | Cross-line 650nm, Class II |
| Imager Field of View | 42° H x 26.8° V nominal |
| Image Sensor | 1280*800 pixels |
| Minimum Print Contrast | 10% minimum reflective difference |
| Roll / Pitch / Skew | 360°, ±60°, ±55° |
| 1D | UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, etc. |
| 2D | PDF417, MicroPDF417, Data Matrix, QR Code, MicroQR, etc. |
| Minimum Element Solution |
Code 128 - 3.0 mil DataMatrix - 4.0 mil |
| Interfaces | RS232, USB keyboard, USB COM |
