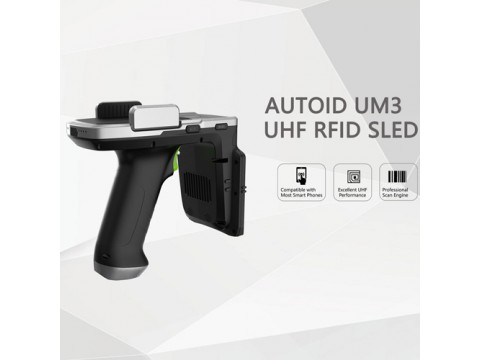

As a high-performance UHF RFID reader, AUTOID UM3 combines excellent volume reading, 1D/2D bar code capture and long battery life. With an intelligent hardware platform, it offers customers an efficient and comfortable experience with convenient operation mode.
-----------------------------------------------------------
ConTACT US
Website:en.seuic.com
Mail:marketing@seuic.com
| Dimensions | 169(H)×90(W)×145(T)mm |
| Weight | 500g |
| Power |
Battery specification: 6400mAh Continuous use: up to 8 hours (UHF reading) |
| Buzzer | Support |
| Interfaces | USB3.0 Type-C |
| Indicator LED | Power, Work, Bluetooth, Vibrator |
| Size of Adapted Phone | Width 60~80 mm, thickness ≤ 22 mm |
| Product Material | Plastic |
| Colour | Black |
| Operating Temp. | -20 ºC~+50 ºC |
| Storage Temp. | -40ºC to + 65ºC |
| Humidity | 5% to 95% RH non-condensing |
| Drop Specification | Multiple drops from 1.2m to smooth concrete resistance |
| Sealing | IP65 per IEC sealing specifications |
| CPU | X1500 |
| Operating System | Linux |
| Memory | 2GB+16GB/3GB+16GB |
| Bluetooth | Bluetooth 5.0, BLE |
| Engine | Impinj R2000 |
| Frequency | 860MHz-960MHz (varies from different countries and regions) |
| Antenna | 4dbi circular polarized antenna |
| Power | 33dBm, support +5~+33dBm adjustable |
| Reading Range | >10m@imipi H47 (subject to effect of environmental conditions) |
| Writing Range | 0-3m subject to effect of environmental conditions |
| Reading rate | >200tags/s |
| Note | Ranges and rates depend on tags and environment |
| Scan Engine | X3 MR: Middle range 1D/2D imaging engine |
| 1D Symbologies | UPC/EAN, UPC/EAN , Code128, GS1-128, Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial2 of 5, Codabar, MSI ,Code11, etc. |
| 2D Symbologies | PDF417, MicroPDF417,Data Matrix, Maxicode, QR Code, MicroQR, Aztec, etc. |
| Note | *This function is optional |
