KRD61 6-DOF Simulation Table

Click image to view original image
Brand: CME
Price: Negotiable
Min.Order: 1 SET
Supply 10 SET
Delivery: Shipment within 90 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2022-07-01 14:21
Hits: 29174
Enquiry
Company Detail


Details

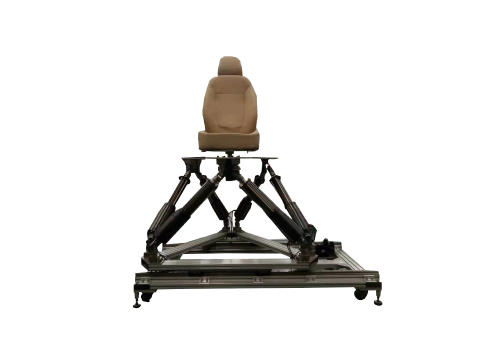

KRD61 series 6-DOF simulation table is a closed-loop servo simulation platform consisting of six servo actuators and six sets of dedicated hinges connected at the top and bottom platforms respectively. By virtue of the telescopic movement of the six actuators, the upper platform moves in six degrees of freedom (X, Y, Z, α, β, γ), so various space motion attitudes can be simulated.

It is widely applied as testing or training simulators in the field of aircraft, vessel, helicopters taking off and landing, automotive, train, earthquake, motion movies, entertainment equipment and other fields. It can even be used for docking of space spacecraft and for refueling of aerial tankers. In the processing industry, it can be made into six-axis linkage machine tools, smart robots, etc.

1. It can realize posture simulation, sine wave simulation, single-DOF motion, and multiple-DOF composite motion.

2. It can realize road spectrum filtering, road spectrum, wave spectrum, and flight spectrum replication.

3. Provide third-party communication interface through TCP / IP protocol.

4. Provide internal and external data output control interfaces.

Apply force and motion in six degrees of freedom to components and subsystems to evaluate their behavior under a diverse array of real-world vibration phenomena. Available in a broad range of capacities, MTS hexapod systems employ versatile FlexTest® controls and renowned RPC® software to meet test needs across the automotive, aerospace and civil engineering industries.

Applications

  • Durability
  • Noise and Vibration
  • Vibration Transmissibility
  • Ride comfort
  • Modal evaluation
  • Show more

Test Specimens

  • Sub-Systems
  • Batteries and Battery Carriages
  • Seats
  • Body Components
  • Exhaust Systems
  • Show more

Test Standards

  • AC156 Earthquake Qualification Testing
  • ISO 12405 Lithium-Ion Battery Testing
  • ISO 13849-1
  • ISO 13090-1
  • ISO 2631-1
