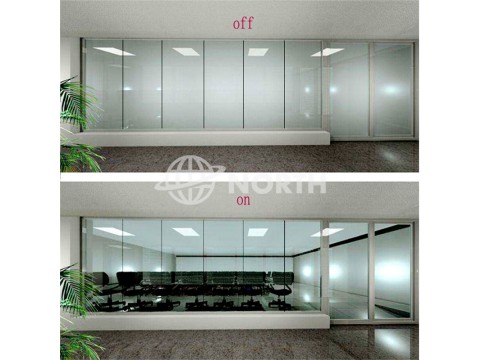

Laminated smart pdlc glass is a type of laminated glass via wiring PDLC film. When electricity is applied to the film, the liquid crystals align and the glass becomes clear; when the power is turned off, the liquid crystals return to their normal scattered positions rendering the glass an opaque translucent. It switches your glass from clear to frost with smart glass technology so it is named switchable glass, smart glass panel, laminated smart PDLC glass.
PDLC Switchable Smart Glass have been widely used in homes, conference rooms, office partition, hospitals, schools, military, hotels and so on.
Specification:
|
Glass Type |
PDLC Switchable Smart Glass |
|
Glass Thickness |
6.38mm, 8.38mm,10.38mm,12.14mm,13.52mm,17.52mm,21.52mm,25.52mm,32.28mm, and multi-layers big thickness glass such as 5*15mm, 9*19mm and so on |
|
Tolerance |
As per standards |
|
Glass Color |
Clear PDLC Switchable Smart Glass, Low Iron PDLC Switchable Smart Glass, Grey PDLC Switchable Smart Glass, Milky White PDLC Switchable Smart Glass, Bronze PDLC Switchable Smart Glass, Pink PDLC Switchable Smart Glass, Yellow PDLC Switchable Smart Glass, Blue PDLC Switchable Smart Glass, Black PDLC Switchable Smart Glass etc. |
|
Size |
Max: 2440mm L*3660mm H, can be customized |
|
Edge Processing |
Flat Edge, Seamed Grind Edge, Polished Edge, Bevel edge, Flat Polished Edge, Round Edge, C shape Edge |
|
Irregular Shape |
Rectangular, Round, Oval, Trapezoid, Parallel, etc. All edges can be bright polished. |
|
Hole & Notch |
Countersunk holes, round holes, bell-mouth holes, simple notch, mickey ears cutouts, etc. The edge of hole and notch can be polished by CNC |
|
Trade Terms |
EXW, FOB, CIF, DDU, etc |
|
Lead Time |
Generally 2-4 weeks |
|
Terms of Payment |
T/T, LC, etc. |
|
MOQ |
To be discussed |
Advantages:
Enjoy the natural light without blinds
Energy best efficient
Create connected spaces with operable electric glass walls, partitions
Easy to install
Keep noise out
Quality Standard:
In accordance with industrial standard
Application:
Skylight
Shower Screen Doors
Doors And Window
Partition
Buildings
Residential
Hospital
Schools
Military
Movies
