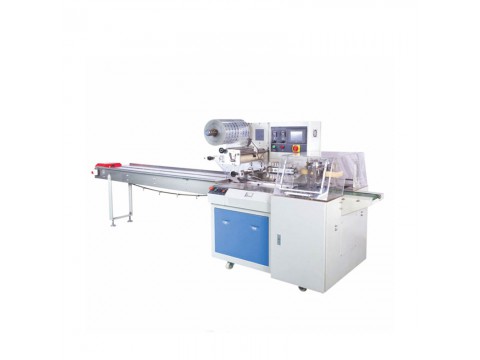

Horizontal Flow Pack Wrapping Machine
The horizontal flow wrapping machine Benefits
Self-regulating controll architecture.
Gusset device, produce more beasutiful bag.
Reciprocating sealing structure, ensure tightly sealing
Higher hygiene standards with easy and time-saving cleaning.
Independent PID temperature control, ideallyu suited to different kinds of packing film.
Long service intervals.
Intelligent sealing technology, fewer rejects when changing speed(e.g. stopping or strating).
Space-saving and compact modular design.
|
Model |
HiTec-R450 |
HiTec-R600 |
|
Capacity |
20-80 bags / min |
20-80 bags / min |
|
Film width |
Max.450mm |
Max.600mm |
|
Bag length |
120-450mm |
120-450mm |
|
Bag width |
50-200mm |
50-280mm |
|
Height |
10-120mm |
10-120mm |
|
Roll diameter |
Max.320mm |
Max.320mm |
|
Power |
220V, 50Hz, 3.2KW |
220V, 50Hz, 3.6KW |
|
Weight |
980KG |
1180KG |
|
Dimensions |
4380 * 870 * 1500mm |
4380 * 970 * 1500mm |
