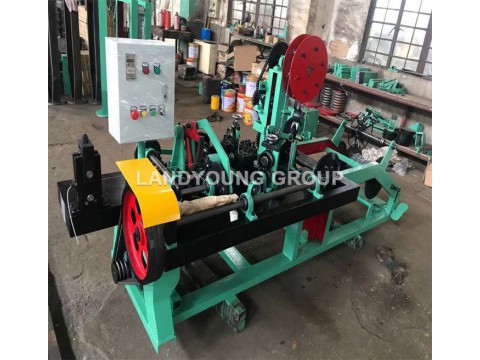

CS-B-type Barbed Wire Machine LANDYOUNG
The material used are general hot plated low carbon steel and low-strength steel wire. Main features: saving materials.
|
NO. |
Item |
Units |
Parameters |
|
1 |
motor |
KW |
2.2 |
|
2 |
Main drive shaft speed |
r/min |
355 |
|
3 |
Unit wire diameter |
mm |
2.2-3.0 |
|
4 |
Barbed wire diameter |
mm |
1.8-2.2 |
|
5 |
Thom distance |
mm |
102(4inches) 127(5inches) |
|
6 |
Theoretical yield |
Kg/h |
40 |
|
7 |
Total weight |
Kg |
1000 |
|
8 |
Dimension |
mm |
3100*1000*1150 |
