Model
|

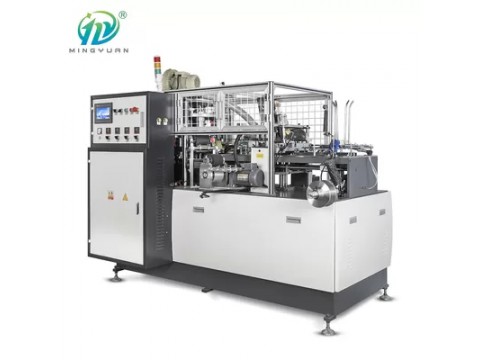

Dubai double wall High speed automatic disposable paper coffee paper cup making machines
|
|||
|
Paper Cup Size:
|
2 ~16 OZ (Mould exchangeable, Max Cup Height:136mm , Max Bottom width :72mm)
|
|||
|
Rated Speed:
|
70-85pcs/min ( Speed affected by cup size, paper quality & thickness),
9OZ, 280GSM paper cup Stable running speed 80 pcs each min
|
|||
|
Raw Material:
|
only one-side PE coated paper
( Popular for Hot drink cups )
|
One or Two side PE coated Paper
(Popular for Hot and Cold drink Cups) |
||
|
Suitable paper weight:
|
140~250gsm
|
140-350gsm
|
||
|
Power Source:
|
50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement.
|
|||
|
Total Power:
|
6.5 KW
|
8.5 KW
|
||
|
Total Weight:
|
GW/NW: 1800KGS/1700KGS
|
|||
|
Pack Size (L*W*H)
|
2100x970x1700mm(Machine Packing Size),
1250x860x1860MM(Counting Machine Packing Size)
|
|||
|
Working Air Source:
|
No need provide Air |
Air pressure:0.4Mpa;
Air Out-put:0.6m³/minute Need to buy Air Compressor(by user) |
||
|
Cup Side Welding:
|
Copper Heater
|
Ultrasonic Heater
|
||
|
Cup Bottom Heating:
|
Heater Knurling
|
1side PE paper by heater knurling;
2side PE paper by cool device (circle water) knurling. |
||
|
Cup Bottom Knurling:
|
Heater Knurling (if use single PE coated paper)
|
|||
