Product Description

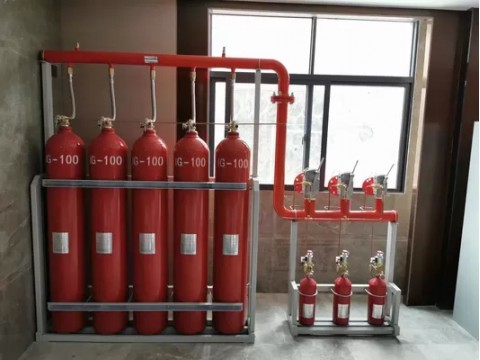

IG100 Fire Suppression System
Description
IG100 fire extinguishing system uses 100% pressurized nitrogen, which accounts for 78% of the atmosphere, as the extinguishing agent. Its ozone depletion potential (ODP) and global warming potential (GWP) are zero. The atmospheric retention time is zero without any adverse effects on the environment. It fully integrates the design concept of the fire-extinguishing system in the new era, so that the product successfully has the function of environmental protection and efficient fire-fighting.
Characteristics of IG100 fire suppression system: protecting the ecological environment of the earth, safety and hygiene do not interfere with vision, no stain caused by extinguishing agent, durable of fire fighting effect. Nitrogen can be separated from the air and produced from a wide range of sources at a cheap charge.
Parameters
| No. | Specification | Technical Parameter | |
| 1 | Working Pressure | 200bar | 300bar |
| 2 | Device Model | DMP80/20 | DMP80/30 |
| 3 | Capacity | 80Ltr | |
| 4 | Filling Capacity of Gas | 20kg | 24.7kg |
| 5 | Outside Diameter of Cylinder | Φ279mm | Φ267mm |
| 6 | Height of Cylinder | 1610mm | 1770mm |
| 7 | Spraying Time | ≤120s | |
| 8 | Filling Rate | 0.25kg/L | 0.31 |
| 9 | Power | DC24V/1.6A | |
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | |
| 11 | Condition of Reserving Room | temperature: 0~50℃ | |
| 12 | Max Working Pressure | 23.2Mpa | 36.3Mpa |
| 13 | Min Working Pressure | 18Mpa | 27Mpa |
Components
Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reduceing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.
Application
Computer room, telecommunication room, transformer room, electrical switch and distribution room, generator room, leaching tank, drying equipment, paint spraying booth, electrical instrument room, control center, library, archives, treasure trove of cultural relics, etc.
Advantages
Suitable for occupied areas
Electrically non – conductive
Chemically inert
Colourless, odourless and flavourless
No residue to clean up after the discharge
Zero Ozone Depletion Potential (ODP)
No greenhouse effect
No global warming impact
No decomposition products
No fog and no loss of post-discharge visibility
Non corrosive/toxic
Stored as a gas
Excellent post-discharge visibility
Very low refill cost.
Easy to obtain anywhere in the world
Certificate
Environmental Management System Certificate
Occupational Health and Safety Management System Certificate
Quality Management System Certificate
Certificate of China Compulsory Product Certification
