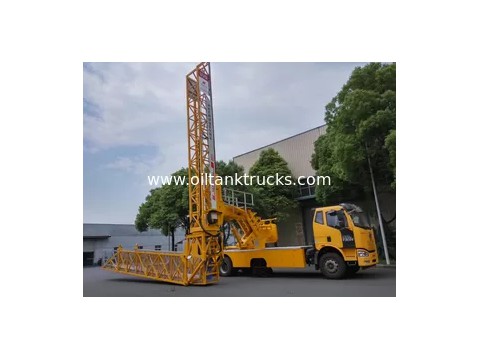

22m Bridge Inspection Truck/ Bridge Repairing Truck
We provide all kinds of special purpose vehicle, such as construction vehicle, tank truck, van semi-trailer, and etc. Our 22m Bridge Inspection Truck/ Bridge Repairing Truck are widely used in all kinds of situation. Our 22m Bridge Inspection Truck/ Bridge Repairing Truck can make your work much smoother and safer. We have professional design team with more than 20years' experience of special purpose vehicle. We have all kinds of special purpose vehicle fit all work situation for you. Also we accept custom design for our customers. 22m Bridge Inspection Truck/ Bridge Repairing Truck
Technical Parameters Of Bridge Detection Vehicles
| Type | HZZ5320JQJ22 | ||
| Name | Lattice type operating vehicle for bridge detection | ||
| Chassis type | D13A400-EC06 | ||
| Driver type | 8×4 | ||
| Total mass | 32000Kg | ||
| Outer dimension | 12420×4000×2500 | ||
| Engine capacity | 12800 | ||
| Engine | 299.84 HP | ||
| Total operating range under bridge | 23000mm | ||
| Vertical operating range under bridge | 6350mm | ||
| The main arm across the width | 2000-3800 | ||
| The first scope of rotation | 0-90° | ||
| The second scope of rotation | 0-180° | ||
| Rated load platform | 200KG | ||
| Hydraulic system | The proportion of electro-hydraulic servo systems | ||
| Control system | |||
| Manual control mode | Cable control mode | Wireless control mode | |
22m Bridge Inspection Truck/ Bridge Repairing Truck
