PRODUCT DEscriptION

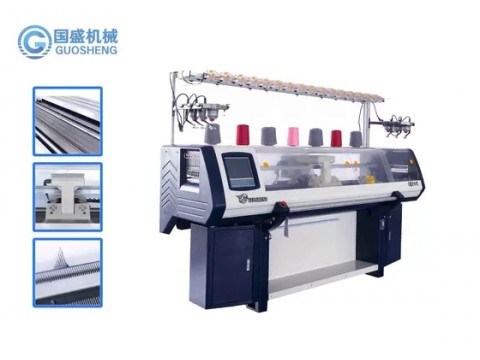

Flat knitting machine can knit basic stitch like plain stitch, rib fabric, links and links, interlock stitch, etc. irregular multi color jacquard, twit flowers weft organization, cord weave, racked stitch, cable, etc.
Flat knitting machine is suitable to use synthetic, wool, acrylic, mixed fiber, yarn material etc to knit sweater,collar,shoe upper,school uniform.ready-made cardigan, hat,scarf and accessories of cloth.
PRODUCT FEATURES
| Model | GSJX-2-52 |
| Gauge | 3G,3.5G,3-5-7G,5G,6G,7G,8G,9G,10G,12G,13G,14G,15G |
| Knitting System | Double System Single Carriage |
| Knitting Width | 52 Inch |
| Knitting Speed | Max.1.2m/Sec |
| Knitting Function | Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide Or Apparent Shaping. |
| Stitch Density | Stitch System Controlled By Stepping Motor,32 Section Stitch Selectable,Adjustable Scope Supported By Subdivision Technology:0-650 |
| Racking | Controlled By Ac Servo Motor,Racking Within 2 Inches And With Fine Adjustiing Function. |
| Drive System | Synchronous Belt Drive,Ac Servo System |
| Needle Selection | Controlled By Computer,Electric Magnet Needle Choose System With High Efficiency. |
| Scissor And Clamp | Including 2 Scissor And 4 Clamps ,Which Individually Controlled By 6 Motors Separately,Located The Both Of Needle Bed Separately,Further To Increase The Work Efficiency And To Reduce Yarn Consumption. |
| Yarn Carrier | 2x8yarn Carriers On Each Side Of 4 Guide Rails,Shiftable On Any Needle Position |
| Take Down Roller | Programmed Instruction Controlled By Stepping Motor,32 Section Levels Selection Adjustable Area:0-100 |
| Sinker System | Assist Knitting,Have Various Results Of Shaping And Stop. |
| Protection System | The Machine Will Automatically Alarm If Yarn Breaking,Float Yarn,Rewind,End Of Knitting,Fail Of Racking,Needle Breakage And Error Programming Occur Ect. |
| Control System | 1,Adopt Lcd Screen,Input Device:Usb,System Memory 256mb,A Great Amount Of Design Files Can Be Stored.2,Monitoring Menu,Each Kind Of Operating Parameter,Can Be Shown,And They Can Be Adjusted At Any Time When The Machine Is Running.3,Design System Is Visual And Easy To Understand And Upgrad.4,Multi Language Version,There Are Chinese,English Etc. |
| Power | 220v ,Single-Phase,Have Memorizing Function At The Power-Off Moment |
