Expanded metal Mesh Sheets and Rolls: GI Expanded metal, Epoxy Coated Steel Expanded, Stainless Steel Expanded Mesh in 304, 304L, 316 and 316L, Aluminum Screen, Nickel Net

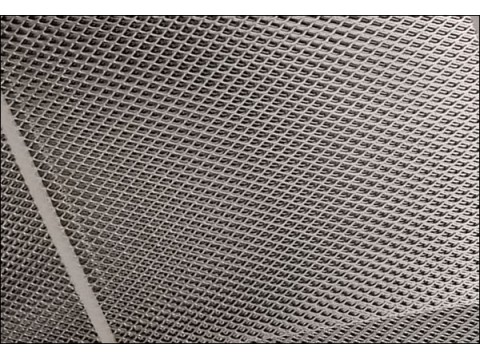

We are a leading Expanded metal Mesh Manufacturer supplying expanded meshes of various sheet size, gauges and metal materials. Expanded metal is a versatile and economical metal mesh product made from solid sheet metals through slitting and stretching processes to metal mesh with a diamond openings joined by continuous, uniform strands.

Opening of Expanded Mesh Netting:

Standard opening of Expanded Mesh is diamond hole, diamond hole is called square hole by some customers. Heavy type expanded metal is stretched into a diamond opening samilar to hexagon hole with reduced short way of diamond opening (SWD) and increased long way of opening (LWD). Hexagonal hole expanded metal offers higher strength and loading capacity usually, it also offers an additional choice for architectural cladding sheets.

Comparing of Standard Diamond Mesh with Hexagonal Mesh:

Expanded Meshes are supplied in following metals:

Expanded Mesh Sheets are popularly supplied in stainless STS 304L and STS 316L, carbon steel, galvanized and aluminum materials and these metal meshes offer savings in weight and metal material and a non-scrap surface.

Expanded metal Mesh is used in following fields:

Expanded steel and aluminum mesh is used for a number of applications, including floor grating, air grill and mosquito screen, security fencing, constructional lath structure reinforcing, architectural mesh.

General Technical Introduction

Material: Low carbon steel, galvanized plate, stainless steel plate, brass plate, aluminum plate, titanium plate, nickel plate, almg alloy plate.
Hole shape: Diamond, square or hexagonal.
Processing: Punched and stretched, sturdy and durable with elegant appearance.
metal Surface: PVC coated, epoxy powder coated, hot dipped galvanized, electro galvanized.

Popular metal Mesh Products

G I Expanded metal for Brick Reinforcement and Wall Plaster in Construction

Material: Galvanised iron
Mesh rolls of 4"wide x 20 mtrs long
Mesh rolls of 6"wide x 20 mtrs long
Accessories:
1/2"(half inch) concrete nail
G.I. washer for fixing mesh

Expanded metal Mesh Grille

Top/bottom grill with wire, wire size : 120mm
Middle grill with wire, wire size: 140mm

Expanded metal, Steel Bleaching Plate

Expanded metal sheet, mild steel, 0.6mm, LWM 6mm, SWM 3.5mm
Sheet size: 1200x900, 1200x1200
Steel Bleaching Plate Expanded metal Sizes:
2.8mm thick sheet, 4' x 8' , Steel Grade: SS400
4.0mm thick sheet, 4' x 8' , Steel Grade: SS400
5.0mm thick sheet, 4' x 8' , Steel Grade: SS400
