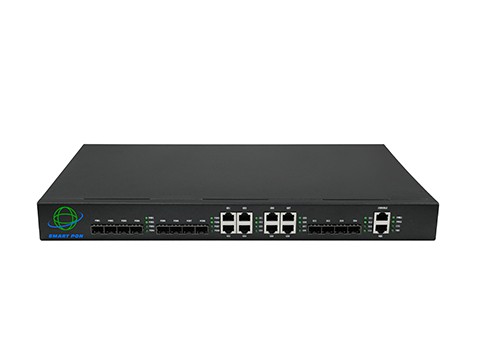

Click image to view original image
Type:FTTx Solutions
Use:FTTX
Pon Port:8*Fixed Epon Port
Uplink interface:8 * GE & 4*10G SFP+ for uplink
2*AC Dual power:input100~240V 47/63Hz
Max splitting ratio:1:64
Working Temperature:-10~55℃
Device managemet:NMS CLI WEB management
Power Consumption:≤45W
Product Overview
EPON OLT is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. EPON OLT series possesses excellent openness, large capacity, high reliability, complete software function, efficient
bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.
The OLT provides 8 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and 4 *10G SFP for uplink. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.
| Item | EPON 8 PON Port |
| Service Port | 8 * PON port, |
| 8 * GE , | |
| 4*10GE SFP optical | |
| Redundancy Design | Dual Voltage Regulators |
| Power Supply | AC: input100~240V 47/63Hz |
| Power Consumption | ≤45W |
| Dimensions (Width x Depth x | 440mm×44mm×260mm |
| Height) | |
| Weight (Full-Loaded) | ≤4.5kg |
| Environmental Requirements | Working temperature: -10°C~55°C |
| Storage temperature: -40°C~70°C | |
| Relative humidity: 10%~90%, non-condensing |
Specifications
Product packaging
Purchase Information:
| Product name | Product description |
| EPON OLT 8PON | 8 * PON port, 8 * GE, 4 * 10G SFP, double AC power supply with optional |
