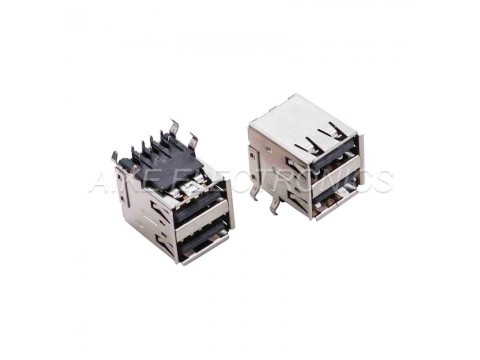

Double-deck(2 in1) USB 2.0 A Type Female,Right Angle,Double-layer DIP type

Type

USB 2.0 A Type Female,Right Angle,Double-layer DIP type(2 IN 1)

Contact No.

8

Materials

For housing can be PBT,LCP,PA6T,PA9T and so on
For shell can be SPCC, Copper and so on.
Both are depands on custoer request

Colour

Black or White or Customized Color

Plating

For Shell, Ni and Tin Plating
For Contact,Au,Ni,and Tin Plating

Plating Thickness

For Shell, 50U',100U' or Higher
For Contact, 1U',3U'5U'15U',30U' or Higher
Both are depands on custoer request

Machenical

Contact current Rating:1.5 Amperes for pin1&pin4.

Dielectric Withstanding Voltage:AC 500V(RMS)

Insulation resistance:1000Megohms Minimum.

Contact Resistance:30m ohm Max for pin1&pin4

Electronical

Mating Force:35 Newtoms.Maximum

Unmating Force:10 Newtoms.Mlnimum

Application

Mainboard,TV,Computer,Rejector,Game machine,smart home and Industrial etc.

Package

Tray Package or Tape Reel Or Customized Package

Delivery Time

Usually 25-35 days after receiving the 30% deposit

Payment terms

TT, L/C, DP or Negotiable

Note

For USB2.0 Conn Series are very mature parts in this fields, we have many tooling for old products which are not shown all into the website, Please contact us to confirm what you need.
This part is only one sample for this series products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know.
