Dutch Plain Woven Wire Mesh, with Solid Triangular Opening, Suitable for High Pressure Filtration

Supplied in stainless steel (SUS304L and 316) chiefly, the finished Dutch Plain wire mesh/cloth offers excellent acid and alkaline resistance. This type of wire cloth is most frequently used for high pressure filtration processer to separate one medium from other medium.

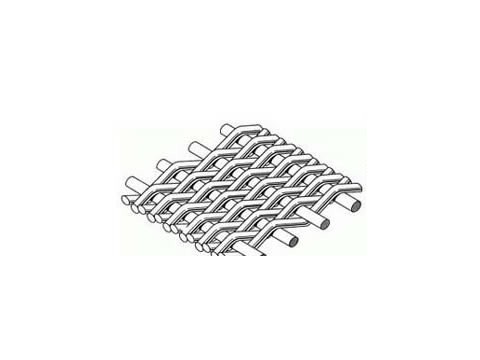

Weaving Method: Dutch plain woven wire mesh/cloth/fabric has straight warp wires and close weft wires.The weft wires lie as close as possible against each other in a linen weave forming a dense strong material with small, irregular and twisting passageways that appear triangular when diagonally viewing the weave .

Compared with normal Plain Weave, the warp wires of the Dutch Plain are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction for the Dutch Plain Woven wire products. Plain Dutch Weave is similar to plain weave, while the warp wires are thicker and lie closer to each other.

Features: Dutch plain woven wire is more solid than square or rectangular mesh, offering relatively high open area, suitable for all kinds of pressure filtration.

Uses: Dutch plain woven wire mesh is mainly used in the following fields:
1, Industrial filter cloth and apparatus of separation;
2, in gas and liquid filtration and other medium separation;
3, Precision pressure filters, the fuel filter, vacuum filter, as filter materials, aerospace, oil refining, pharmaceutical, sugaring, oil, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, food, health research,etc.
