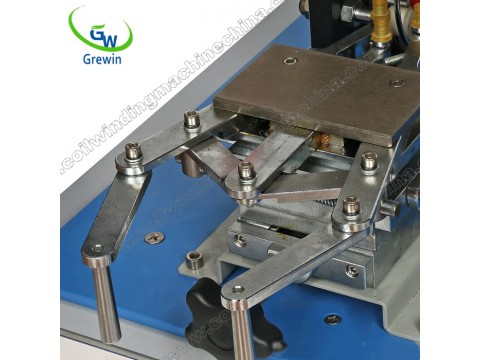

Toroidal Electric Coil Winding Machine uses belt heads to accommodate a wide range of core sizes

NAME：GWM-0827P Electric Coil Winding Machine

SPECIFICATION:

FEATURES:

Electric Coil Winding Machine are fast machines for mass production of small inductive components.

Electric Coil Winding Machine utilize slider heads and belt heads to accommodate a wide range of core sizesand wire diameters.

Accurately wire spacing by programmable controller.

Main drive and core rotation are accomplished by powerful,long life AC motors and proportionally linkedvariable speed controllers.

Collocate belt type winding head,interchangeable roller table with different size shuttle(magazine)for different Electric Coil Winding Machine demensions wire diamete turns,so that to reduce the cost.one set standard automatic toroid winding machine include one PCS shuttle only，other sizes winding shuttle are optional

ADVANTAGES:

Wide range of application, Large range of Speed adjustment, wide range of the wire diameter, Multi-style of core, Brake tension adjustable, Good settlement for large outer diameter, small inner diameter, heavy wire coils.

Electric Coil Winding Machine has high production efficiency, increase winding efficiency by adjustment of suitable brake tension,

Each wiring part guarantee no wire damage.

Parts highly optimized and universal for general use, Easy maintenance

A short period of delivery：10 days after receipt of payment

Stable machine performance

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.
