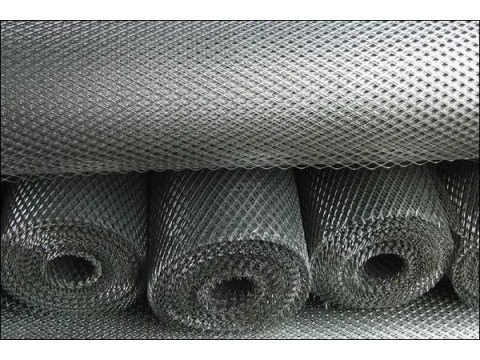

Expanded metal filters are made from flattened, regular or corrugated expanded aluminum, galvanized steel or stainless steel.
Air Filter Manufacturer use a lot of thin gauge expanded metal mesh in lamination process. We offer galvanised steel material 0.3mm thick flattened and levelled in various sizes.
Diamond Expanded metal and micro opening expanded metal can be used as materials for filter sheets. Expanded metal filter is manufactured in galvanized steel expanded sheets, commonly used in the manufacture of the air filters, primarily for the automotive industry, and also in bells extraction for kitchens.
Expanded metal filter has glossy finish, low weight and resistance to oxidation. All these features make expanded metal filter an alternative to other metal filters.
Material: GALVANIZED EXPANDED metaL MESH
Type: GI
Properties: Minimized spangle, Skinpass, Chromated, Unoiled.
Spec after flattening: Thickness: 0.19T Strand width: 0.56mm Mesh opening size: 20*32mm
| Item | Material | Type | Thickness | Roll Size (mm) | |
|
Width -10/+0 mm |
LM | ||||
| 1 | Pre-GI | Flat | 0.3 | 280 | 548M |
| 2 | Pre-GI | Flat | 0.3 | 340 | 548M |
| 3 | Pre-GI | Flat | 0.3 | 360 | 548M |
| 4 | Pre-GI | Flat | 0.3 | 380 | 548M |
| 5 | Pre-GI | Flat | 0.3 | 430 | 548M |
| 6 | Pre-GI | Flat | 0.3 | 440 | 548M |
| 7 | Pre-GI | Flat | 0.3 | 480 | 548M |
| 8 | Pre-GI | Flat | 0.3 | 580 | 548M |
| 9 | Pre-GI | Flat | 0.3 | 609 | 548M |
| 10 | Pre-GI | Flat | 0.3 | 680 | 548M |
| 11 | Pre-GI | Flat | 0.3 | 740 | 548M |
Our client need a big diamond slit to reduce the static pressure of units, at the same time increase the air flow and cooling capacity.
so, we customized：aluminum media filter mesh
Specification:
Thickness: 5/8”
Material: Aluminum media (mesh)
Layer: whatever available standard layers
Size: roll or sheet
We customized expanded wire mesh filter for our customers in the world:
Fine Mesh Aluminum Expanded Sheet for Air-conditioning Filter, dimensions of the expanded area are: LWD = 2mm (0.787”), SWD = 1.5mm (0.06”), Wire Diam. 0.5mm (0.02”)"
