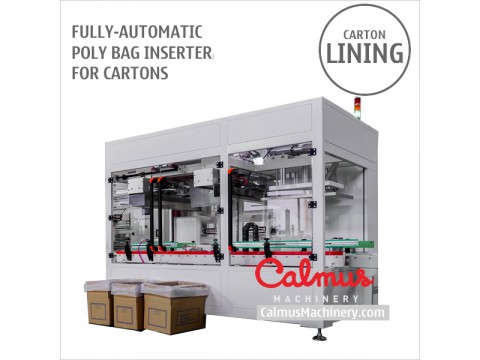

Fully-automatic Poly Bag Inserter | Carton Lining Machine | Liner Placer
Poly bag inserter for placing liner in carton or case. This China-made fully-automatic bag inserting machine inserts a poly bag in a box from a roll stock film, opens and cuffs the bag over the carton flaps, blows air to extend the bag to fit the internal wall of carton better.
The bag inserter reduces labor and material costs, is simple to operate and easy to adjust. High efficiency and labor saving.
Specifications:
Inserting capacity: 6-7 cartons/min
Film width: 460-840mm
Applicable carton dimensions: L250-550*W200-400*H150-40 0mm, also can be customized
Power supply: 3 phase, 4.5 kW
Compressed air: 6 bar
Air consumption: 100 NL/min
Machine dimensions: L3322*W2177*H2350mm (for reference only)
We are also able to manufacture high-speed bag inserter with 12 cartons/minute.
