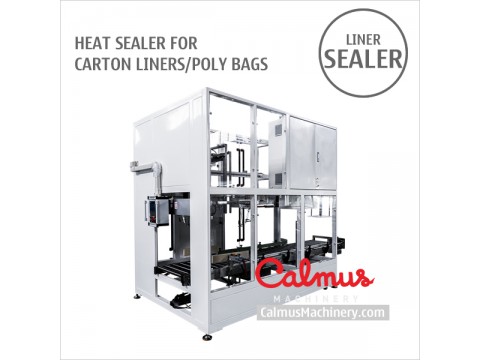

Carton Liner Sealing Machine Poly Bag Sealer

Fully-automatic Carton Liner Sealing Machine | Poly Bag Sealer

This carton liner poly bag sealer is designed to heat-seal liner bags in boxes online. The sealer uncuffs the bag off the carton flaps, then folds it inwards from sides, vacuumizes the bag (optional), heat-seals the bag top and then folds it in the carton. This bag sealer reduces labor and material costs, is simple to operate and easy to adjust. High efficiency and labor saving.

Specifications:
Sealing capacity: 3-5 cartons/min
Film width: 460-840mm
Applicable carton dims: L250-550*W200-400*H150-400mm, also can be customized
Power supply: 3 phases, 7 kW
Compressed air: 6-7 bar
Air consumption: 100 NL/min
Machine dims: L3322*W2177*H2350mm (for reference only)

We also have a bag inserter or liner placer for lining cartons with poly bags by one each. The whole erect-line-fill-seals bag in box line is also available.
