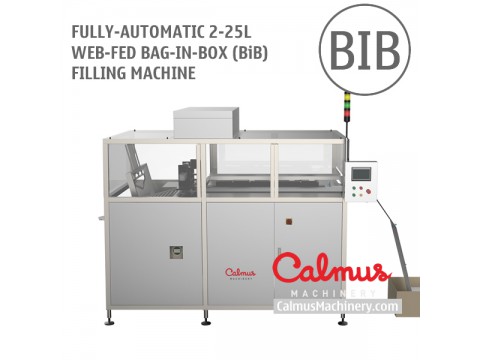

Fully-automatic BiB Filler | Bag-in-Box Filling Machine
It is a web-fed bag in box filling machine made in China and is designed for filling spouted bags with a wide range of liquids like drinking water, edible oil, post mix syrup, fresh milk and beverage. This filling machine features fully automated by employing a PLC and touch screen control system. The whole process of continuous bags feed, decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart from continuous bags and transiting to the conveyor can be completed automatically, no human operation required. This Bag-in-Box Filler is designed with CIP (Clean-in-Place) function and pipeline connection.
Features:
1) Fully-automatic, WEB type bags fed.
2) Easy to use. The touch-screen control system makes operation easy.
3) An electromagnetic or turbine flowmeter employed improves filling precision and truly achieves the quantitative filling.
4) An air filter employed brings clean air to the filling space.
5) Grade 304 stainless steel body and 316L stainless fluid-contact parts.
6) Filling a different capacity bag acceptable only by changing the setting.
7) Options of vacuumization and nitrogen injection available for specific products use.
Specifications:
Applicable bags: pre-cut continuous module or WEB type, 2-25 litres spout bags. (Spout is called Gland or Flange too.)
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
Power: 3.5 kW
Compressed air: 6-8 bar, 500 NL/min
We also supply the downstream cartoning line for bag-in-box packaging.
