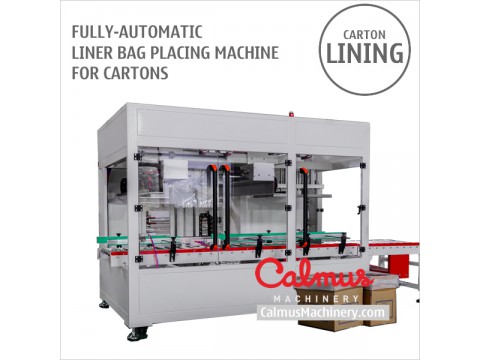

Polybag Maker Bag Inserter Machine from Roll Stock Film

Polybag Maker Bag Inserter Machine from Roll Stock Film

Bag inserter machine for making and inserting bags in boxes by one each. This China-made fully-automatic poly bag inserter cuts and seals film as a bag from a roll stock, inserts it in a formed case, opens and cuffs the bag over the case tops, blows air to extend the liner to fit the internal wall of box better. The liner bag inserting machine reduces labor and material costs, is simple to operate and easy to adjust.

This is an ideal machine for bulk box packaging of bread rolls, edible oil and fat, fruit and vegetable, granules and nuts, meat and fish, caps and closures, golfs and other. It will be more efficient and save more labor if this poly bag inserter works with a carton erector as the combination can be an automatic lined carton forming line.

Specifications:
Bag making and Inserting capacity: 6-7 cartons/min
Film width: 460-840mm
Applicable carton dimensions: L250-550*W200-400*H150-40 0mm, also can be customized
Power supply: 3 phase, 4.5 kW
Compressed air: 6 bar
Air consumption: 100 NL/min
Machine dimensions: L3322*W2177*H2350mm (for reference only)

We are also able to manufacture high-speed bag inserter with 30 cartons/minute.
