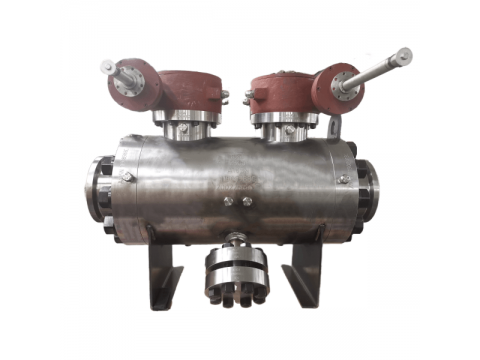

Double Block and Bleed Ball Valve

We Provide Double Block and Bleed Ball Valves, ASTM A105N, API 6D, 8 Inch, 2500 LB, Reduced Bore, HUB End, API 6D, Gear Opt, Anti-static, and Fire Safe.

Product Item: Modular Double Block and Bleed Ball Valve Supplier
Model No.: 8DBB25HA105
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat, Double Ball, Compact body
Nominal size: 8 Inch
Nominal class: 2500 LB
Bore Type: Reduced Bore
End Connection: HUB
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F316, PEEK
Face-to-face: Manufacturer Standard
Test and inspection: API 598, API 6D
Key Features: Double Ball, Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, O-ring / Lip seal
configuration available, Low fugitive emission stem packing available
