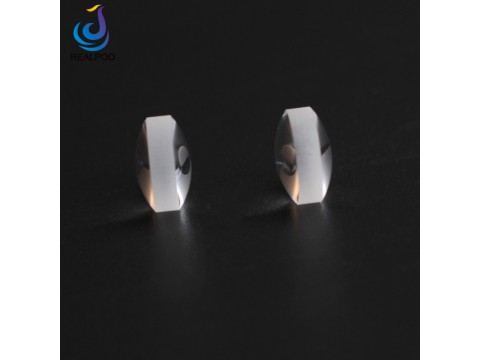

VIS coated Fused Silica double convex lens

Biconvex Lenses are manufactured with an identical convex surface on both sides of the lens. This kind of lenses has positive focal length and form both real and vitrual images.

Specifications:

Material : Fused Silica
Diameter : 1mm ~ 300mm
Focal Legnth Tolerance :+/-1%
Diameter Tolerance :+0.0/-0.1mm
Thickness Tolerance :+/-0.1mm
Surface Quality :40/20
Centration :<3 arc minutes
Clear Aperture :>90%
Bevel : Protective bevel as needed
Coating :Upon your request
