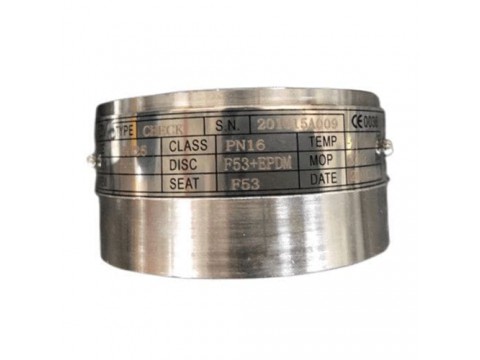

ASTM A995 5A Non Return Valve
Click image to view original image
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2023-09-12 13:55
Hits: 26099
Enquiry
Company Detail


Details

Valve Description:
1842013 Non-Return Industrial Valve Manufacturer1SBN1W5A
Design Standard: API 594
Structure: Piston Check
Nominal size: 1 Inch
Nominal class: 150 LB
End Connection: Wafer
Operation: /
Body Material: ASTM A995 5A
Trim Material: F55 disc, X-750 Spring
Face to face: API 594
Test and inspection: API 598
Key Features: High flow efficiency, Low noise, Short face-to-face length

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -46℃ - +200℃
