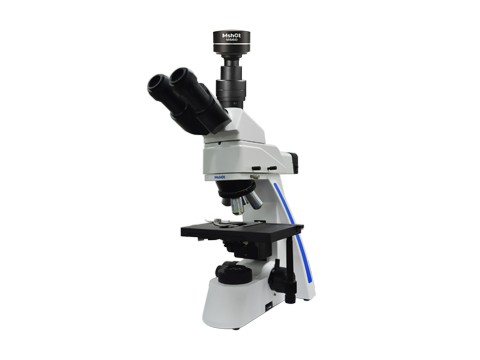

Digital microscope MP40

Click image to view original image
Brand: MSHOT
型号: MP40
规格: Digital microscope
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2017-12-13 17:24
Hits: 2056935
Enquiry
Company Detail


Details

MP40 Polarization microscope is a transmitted &reflected polarization microscope utilized polarizes light to observe and research the matter. Single polarizing, orthogonal polarizing, cone light are available MP40 is applied in geology, chemicals, physic as well as leechdom fields. Also it is widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is an idea instrument for scientific research and universities teaching demo.


Features:

  • Transmitted, Reflected, transmitted/reflected illumination can be choosn
  • Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
  • Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
  • Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener Stage vertical effective movement up to 30mm. Wide voltage range power supply (85-265V 47-60HZ), 6V20W halogen lamp, brightness adjustable

Standard Configuration:


Item Specification
Eyepiece Wide field WF10X (|μ18mm)
Division eyepiece 10X (|μ18mm) 0.10mm/div
Objective (center adjustable) Strain-free plan achromatic objective (no cover glass) PL 5X/0.12
Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25
Strain-free plan achromatic objective (no cover glass)
PL L40X/0.60 (spring)
Strain-free plan achromatic objective (no cover glass)
PL L60X/0.75 (spring)
Reflected illumination Polarizer Reflected illumination 90°rotatable
Illumination 6V 20w, halogen lamp, adjustable brightness
Transmitted illumination Polarizer 360°rotatable, have 0,90,180,270 four scale
Collector For halogen lamp illumination
Illumination 6V 20w, halogen lamp, adjustable brightness
Abbe condenser N.A. 1.25 Rack & pinion adjustable
Eyepieces tube Trinocular, Inclination of 30?, can send 100% of the image light to top photography port
Intermediate attachment Built-in analyzer, can switch to normal observe or polarizing observe freely ,90° rotatable with scale, minimum retardation resolution 12'
Bertrand lens , impellent style , center adjustable
|E compensator
|E/4 compensator
Quarts wedge compensator
Nosepiece Quadruple (Frontward ball bearing inner locating)
Focus system Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
Stage Rotatable stage, Diameter |μ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener

Optional accessories:


Item Specification
Eyepiece Wide field WF16X(|μ11mm)
Objective(center adjustable) Strain-free plan achromatic objective(cover glass:0.17mm) PL 20X/0.40
Strain-free plan achromatic objective(cover glass:0.17mm) PL 100X/1.25 (Oil ,spring)
Strain-free plan achromatic objective(no cover glass) PL L 20X/0.40
Strain-free plan achromatic objective(no cover glass) PL L 50X/0.70
Strain-free plan achromatic objective(no cover glass) PL L 80X/0.80
Strain-free plan achromatic objective (Dry) (no cover glass) PL L 100X/0.85 (Spring)
Nosepiece Quadruple (Frontward ball bearing inner locating)£adjust the center of objective
Slide moving holder Moving range: 30mmX25mm
Camera Mshot digital microscope camera
