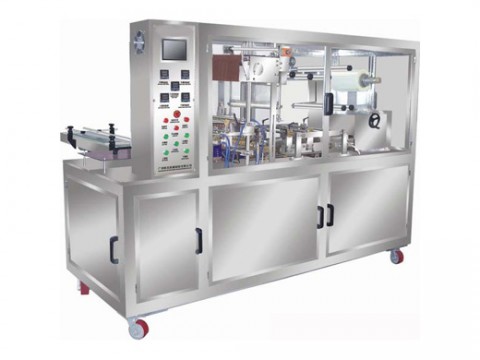

Full-auto Box Facial Tissue Packing Machine
Click image to view original image
Brand: Xinyun
型号： XY- GU -35
Price: 40000.00USD/1
Min.Order: 1 1
Supply 1 1
Delivery: Shipment within 70 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-02-02 09:59
Hits: 3883993
Buy
Company Detail


Details
XY- GU -35 Full-auto Box Facial Tissue Packing Machine
Main performance and structure features:
This machine is widely used in the cardboard box product single piece or multi-piece (assembling) automatic over-warpping. Adopt PLC human-machine interface controlling:the servo engine controls the film feeding and the specification of the film feeding can be adjusted at any level.The mainframeconsists of all stainless steelframeand close organic glass shield and platform of the machine and all the parts are produced by stainless steel according to the sanitary standard.This machine,through a few components,is able to conduct the package of different box-type products(namely different specification)
Technical Parmeters:
Model 35A 35B
Packing Size(mm) 50-300×40-180×10-90 50-420×40-280×10-130
Speed(boxes/min) 15-35 15-25
Power Consumption(KW) 6.5(380V 50Hz) 8.5(380V 50Hz)
Compressed air pressure(Mpa) 0.5 0.5
Packing Film Width(mm) ≤330 ≤550
Overall Dimension(mm) 2350×900×1650 2550×1000×1650
Weght(KG) 900 1100
