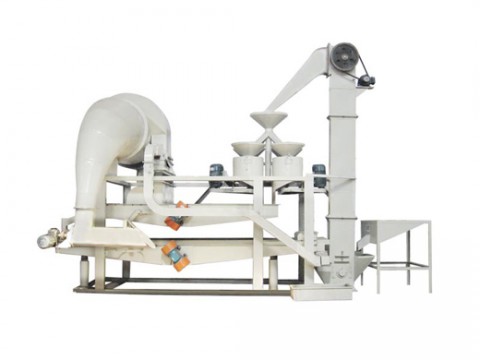

The buckwheat cleaning sizing hulling & separating equipment is one of Qiaopai Group's patent products.
It consists of two units: cleaning and sizing unit, hulling and separating unit.
Cleaning and sizing unit can clean various impurities in buckwheat, then size the buckwheat into 7 grades.
Hulling and separating unit can dehull each grade of buckwheat individually, then remove shells from kernels, separate un-hulled seeds. Un-hulled seeds will be returned to dehuller for re-hulling again automatically,……, for more info, pls kindly contact Annie at: annie_yuxin#yahoo.com or MSN: annie_li#hotmail.com
MAIN PARAMATER
Total Power: 14.62kw (380v)
Cleaning and sizing unit:
Power: 8.18kw
Capacity: 600-800kg/h
Occupied area: 8.22 m × 2.8m
Height: 3.2m
Hulling and separating unit:
Power: 6.44kw
Output: 200-250kg/h kernels
% of buckwheat kernels: 75% (i.e. 1kg of buckwheat seeds can be produced into 0.75kg of buckwheat kernels).
% of unhulled seeds in kernels: less than 2%
% of the broken kernels (Broken kernel is less than 3/4 of whole buckwheat kernel): 2% max.
Occupied area: 5.6 m × 2.8m
Height: 3.2m
Meantime, our company also specializes Sunflower seed cleaning dehulling & separating equipment, pumpkin seed shelling line, watermelon seed shelling equipment, oat hulling machine, hempseed dehuller, rapeseed shell-removing machine, almond dehulling equipment, hazelnut dehulling line, mung bean decorticating machine, castor bean shelling machine, Jatropha seed dehulling machine, Gordon Euryale Seed hulling & separating equipment, acorn huller, almond kernel blanching machine, peanut kernel blancher, oil press, filling and packing machine, bean cleaning machine, roaster, all kinds of cleaner, destoner, elevator, and some agro-products, such as: hulled sunflower seed kernels, pumpkin seed kernels, (roasted) buckwheat kernels, etc.
