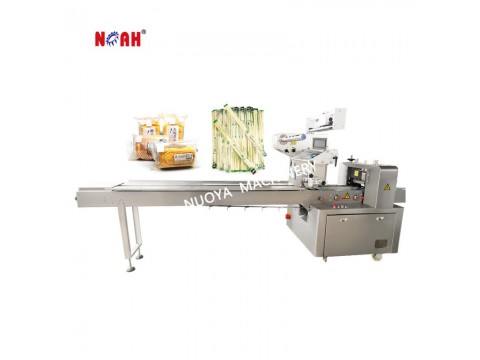

It is a latest generation edition plate automatic packing machine designed according to the requirement of GMP by our company. Equipped with cursor to adjust the plate and sealing synchronously,automatically adjustable stroke,advanced technology,full purpose,it is an ideal equipment for medicine,dry fruit,biscuit,jerry fruit dtc foodstuff,five metals parts,carton,tray and so on.
Features:
1. As adoption of Siemens (PLC)control for the major control of the machine, precise in photoelectric detection tracking, and automatic double-way remedying, so its operation is precise and steady. The conveying chain can be adjusted without stopping. It is very convenient and fast.
2. Automatic feeder is simple and steady with wide range of regulation and powerful applicability.
3. Adjustable end close structure, to make the sealing more perfect. No-packaging cutting phenomenon.
4. It can be equipped with filling nitrogen device, install the heating dot maker, its position can be adjusted freely.
It is suitable for pharmaceutical industry, large density capsule or heavily weight, and other regular shape.
Main Technical data:
|
Model
|
GZB-260
|
GZB-450
|
GZB-450limb
|
|
Max.packaging capacity (Time/min)
|
200 Decided according to the package
|
150 Decided according to the package
|
100 Decided according to the package
|
|
Max.width of paper
|
260
|
450
|
450
|
|
Max.out diameter of paper roll(mm)
|
320
|
320
|
320
|
|
Package dimension(mm)
|
L50-150 W25-100
H2-30
|
L60-220 W30-180
H5-45
|
L80-290 W40-180
H5-70
|
|
Power
|
2KW 220V
|
2.5KW 220V
|
2.5KW 220V
|
|
Overall dimensions(mm)
|
1750*880*1500
|
1750*980*1500
|
1750*980*1500
|
|
length of the feeding belt
|
1750
|
2000/3000/4000
|
2000/3000/4000
|
|
Weight(kg)
|
650
|
780
|
780
|
Notice: All sizes,our factory has the right change but not notice, pardon!
|
