Brand:Rivet
Origin:China
Force:Pneumatic
Color:White&bue
Mini Order:1Set
Supply:10000Set
deliver goods:Within 3 days

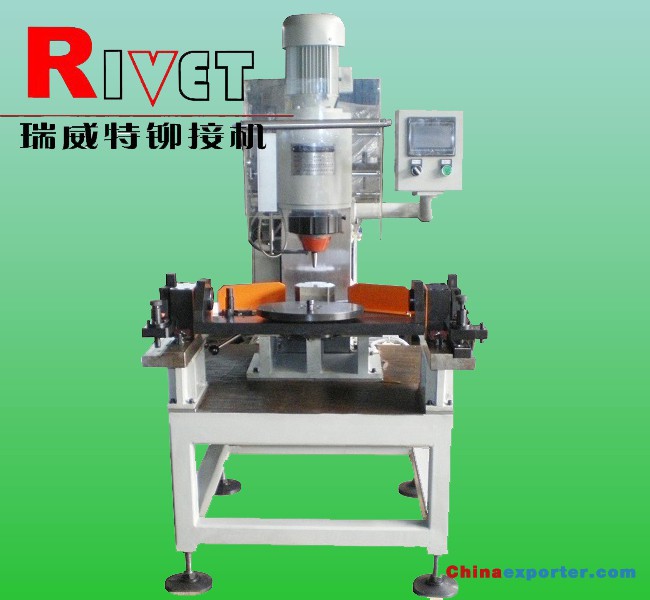

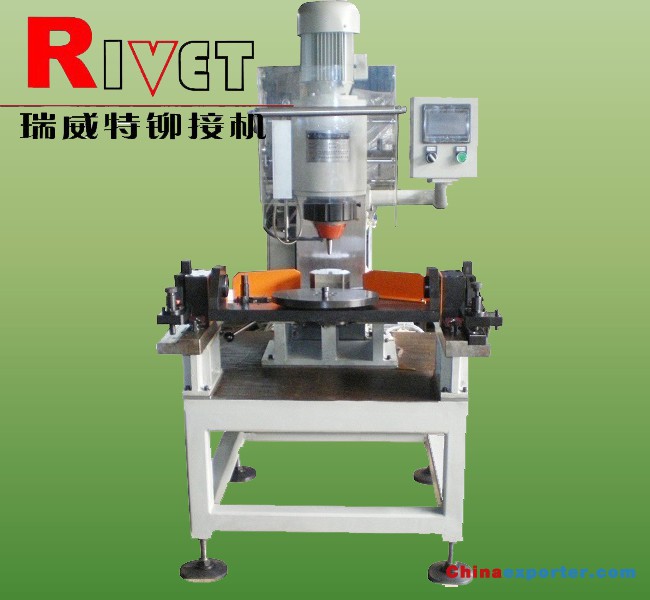

JM12QA(Aircraft brake pad riveting machine)
Characteristics:
■Mechanical turnover,easy assembly rivet
■Dividing device,automatic alignment and lock
■5.6 Inches color LCD touch screen
■Riveting height can be controlled
■Riveting pressure and speed stepless adjustable
■ Riveting surface smooth & beautiful
■ Applicable for all kinds of specifications and single side or double side brake pad‘s process
JM12QA
JM12Q-A aircraft brake pad riveting machine is special designed for China Southern Airline Service Department developed special purpose riveting machine for process aircraft brake pad, this machine can process various specifications and types of aircraft brake pad such as Boeing aircraft, McDonnell aircraft, and airbus etc.
Specification:
▲Max.pressure 20Kn
▲Stroke 30mm
▲Max.processing ablity Ф12mm
▲Available working space 145mm
▲Throat depth 160mm
▲Riveting tool length 50mm
▲Eccentric angle 4°
▲Rotation rate 960rpm
▲Power 0.75Kw
▲Physical size 820mmx850mmx1450mm
▲Net weight 320Kg

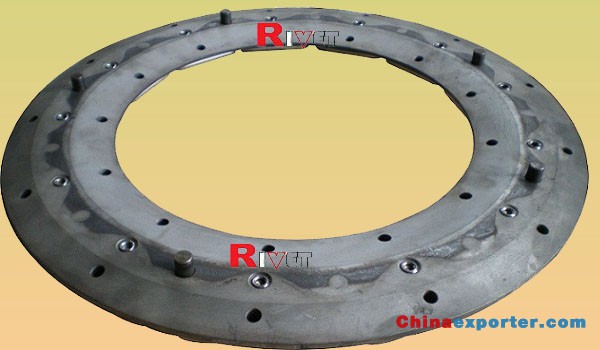

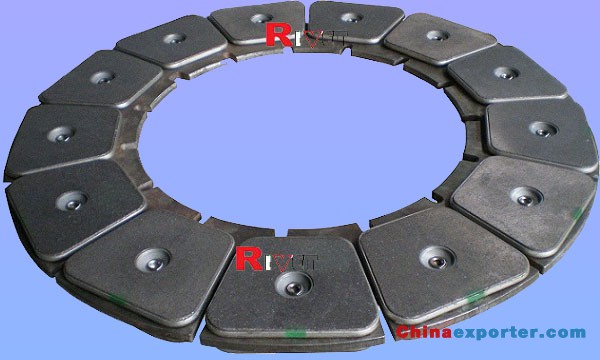

Processed sample
