Brand:Rivet
Origin:China
Force:Hydrulic
Color:White&bue
Mini Order:1Set
Supply:10000Set
deliver goods:Within 10 days

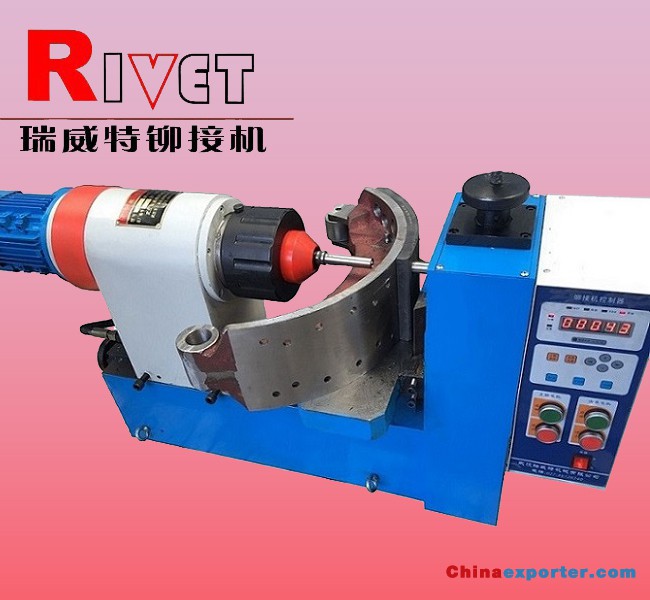

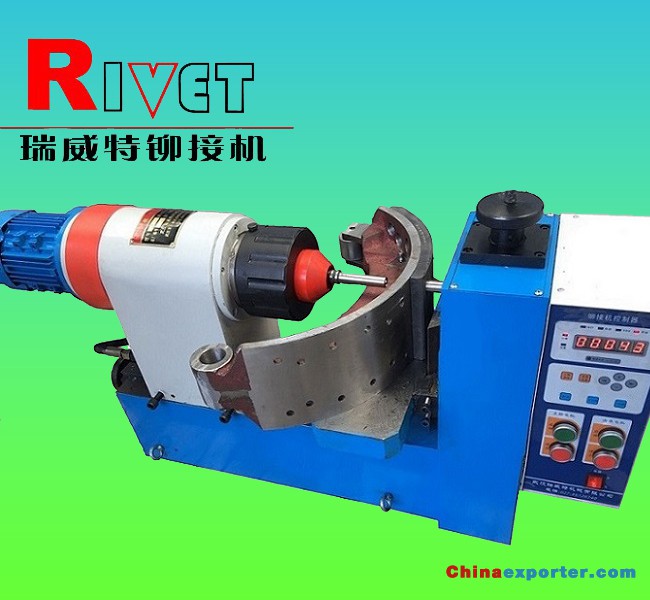

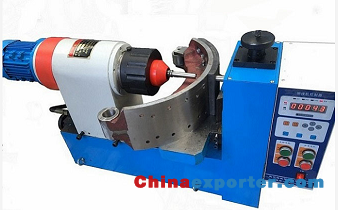

BM9W-C (Brake shoe and lining riveting machine)
Characteristics:
■Horizontal style
■Max. riveting diameterΦ9mm
■Hydraulic or pneumatic as optional
■Pressure by stepless regulation
■Rotary part protected
■Power head movable
■Oil tank separate from fuselage
■Orbital structure
BM9W-C
Special purpose riveting machine of brake shoes and linings:
The purpose design of model BM9W is for processing brake shoes and linings, especially for heavy duty truck brake shoes and linings. Due to the brake shoes is heavy and difficult to carry by manual that the machine style by horizontal and put the brake shoe and lining on workbench by horizontal direction. The machine by orbital structure and cold forming, the workbench movable to meet brake shoe's different width and rivets position, and brake shoe no need to clamping during processing. Hydraulic system equipped with throttle valve to control piston speed effectively. Electric control system equipped with counter and time relay to made operation easy and simple. Oil tank can joint with machine and also can separated from fuselage.
Specifications:
▲Max. riveting diameter Ф 9mm ( solid steel rivet )
▲Max riveting pressure 14Kn
▲Stroke Length Range 60mm
▲Available space 120mm
▲Throat depth 135mm
▲Riveting tool lenght 85mm
▲Eccentric angle 3°24′
▲Motive force Hydraulic
▲Workbench dimensions 400mm×135mm
▲Power 0.92Kw
▲Physical size 500mm×400mm×1000mm
▲Net weigh 280Kg
