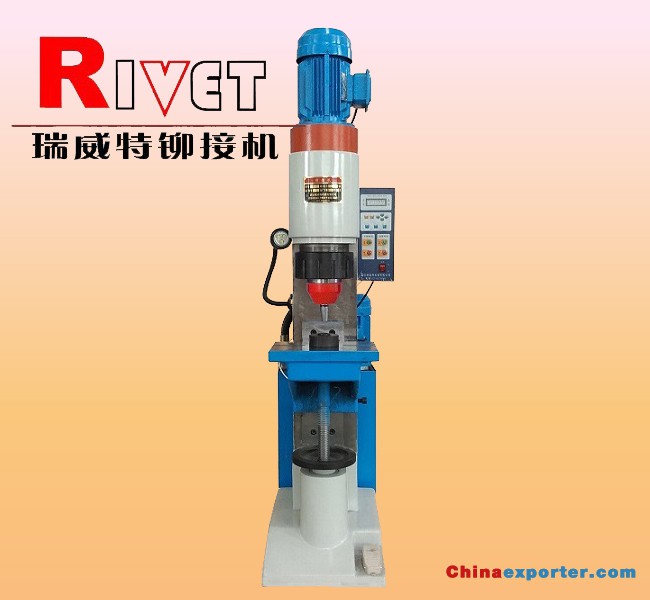

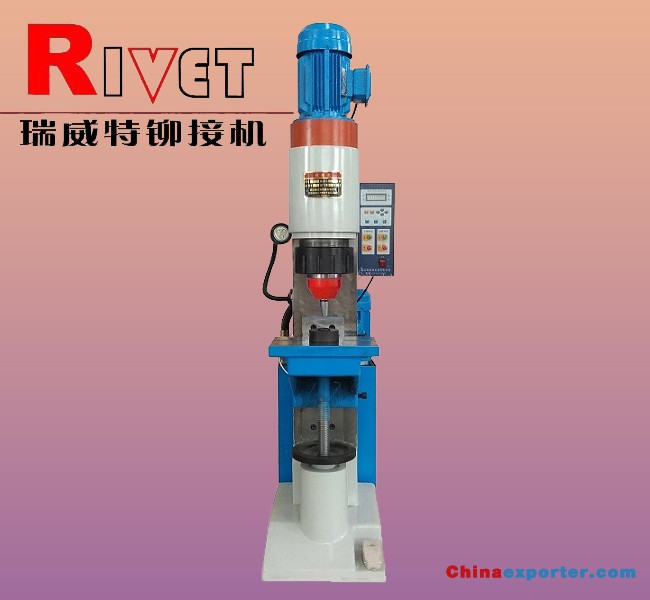

JM16-C (Hydraulic radial riveting machine)

Characteristics:

■Medium sized vertical style

■Max riveting diameter Ф16mm (solid rivet)

■Workbench adjustable

■Hydraulic driven by stepless regulation

■Rotary part protected

■Double-hand buttons or foot pedal as optional

■Set riveting time at as will

■Automatic and manual functions

JM16-C

Scope of applications:Daily hardware, electronic products, fastener, atuomobile                                                               parts etc.

Customized available

The model of JM16-C is a kind of vertical hydraulic riveting machine and apply to medium sized rivets with at deepen position. The machine application of advanced radial structure to makes processing more stability, T-slot fixing clamping apparatus available, positioning hole and axis are coaxial to insure riveting precisions. Hydraulic system equipped with one-way throttle valve to control stroke speed effectively. Workbench adjustment of down and up to meet different workpiece's body and shape, stroke control by micro scale system and accurate is±0.02mm.

Specification:

▲Max riveting diameter Ф 16mm ( solid steel rivet )

▲Max riveting pressure 34Kn

▲Stroke Length Range 60mm

▲Available work space 200mm

▲Throat depth 195mm

▲Riveting tool length 62mm

▲Eccentric angle 4°

▲Motive force Hydraulic

▲Oil-tank volume 60 Liters

▲Pressure oil brand 46# ISO

▲Area of the table surface 350mm×285mm

▲Power 2.2Kw

▲Physical size 850mm×600mm×1680mm

▲Net weight 570Kg
