Brand:Rivet
Origin:China
Force:Hydraulic
Structurer:Desktop
Mini Order:1Sets
Supply:100000Sets
deliver goods:Within 3 days

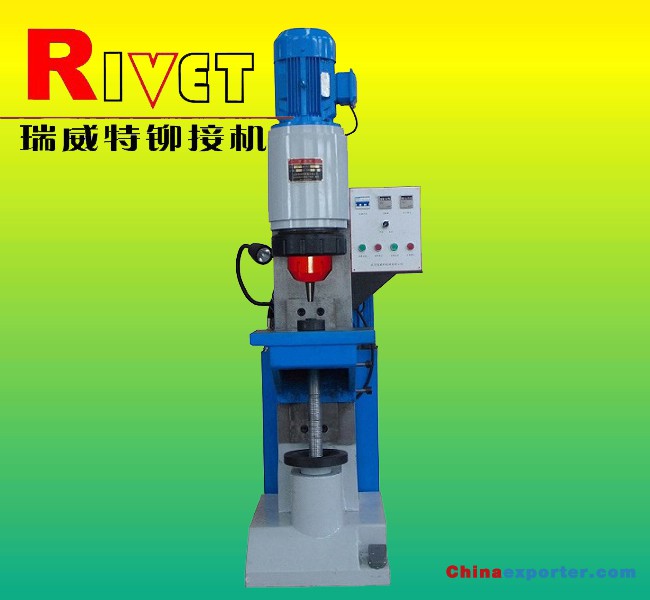

JM20(Radial riveting machine)
Characteristics:
■Heavy duty vertical style
■Max riveting diameter Ф 20mm
■Workbench adjustable
■Hydraulic driven by stelpless regulation
■Rotary part proteced
■Double-hand buttons or foot pedal as optional
■Set riveting time as will
JM20
Scope of application :Daily hardware, electrinic products, building fastener, automobile parts etc.
Customized available
JM20 machine is a heavy duty radial hydraulic riveting machine, besides the utilization of the fifth generation technology, the machine is also equipped with screw lift table (Stationary base part), the table has a trapezoidal groove clamps for the riveting die. The center of the working station is aligned with the spindle bore axis and it's used to better positioning the fixture. The riveting speed can be easily controlled with the installation of one-way valve oil. The digital electronic control time relay and digital counters has been installed to ease the user control. Oil tank can be combined or disassembled with the machine for easy transportation and assembly. Riveting speed can be easily controlled by Fluid path-way valve. The workbench is equipped with long stroke screw lift system and made convenience for the adjustment of the machine. As a result of the above function and orbital design, the riveting operation goes with ease and the workpiece finishing is created smoothly.
Specification:
▲Max. riveting diameter Ф 20mm (solid steel rivet )
▲Max. riveting pressure 65Kn
▲Stroke Length Range 30mm
▲Available work space 260mm
▲Throat depth 225mm
▲Riveting tool length 62mm
▲Eccentric angle 4°
▲Motive force Hydraulic
▲Oil-tank volume 120 Liters
▲Pressure oil brand 46# ISO
▲Workbench dimensions 430mm×290mm
▲Power 4.4Kw
▲Physical size 1070mm×600mm×1930mm
▲Net weight 850Kg
