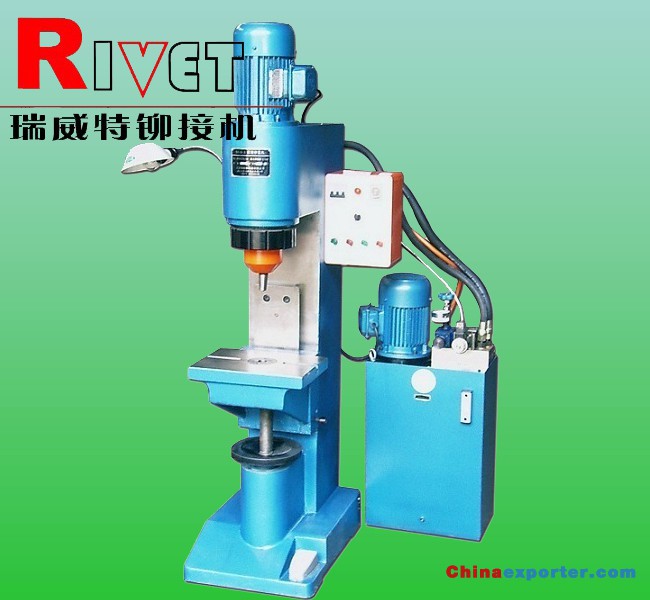

BM16-A (Orbital riveting machine)

Characteristics:

■Medium sized vertical style

■Workbench adjustable

■Max riveting diameter Ф 16mm

■Hydraulic driven

■Pressure by stepless regulation

■Rotary part protected

■Set riveting time as will

BM16-A

Scope of application :Daily hardware, electronic products, building               tools,automobile parts etc.

Customized available

BM16-A machine is a medium-sized orbital hydraulic riveting machine, besides the utilization of the fifth generation technology, the machine is also equipped with screw lift table (Stationary base part), the table has a trapezoidal groove clamps for the riveting die. The center of the working station is aligned with the spindle bore axis and it's used to better positioning the fixture. The riveting speed can be easily controlled with the installation of one-way valve oil.  The digital electronic control time relay and digital counters has been installed to ease the user control. Oil tank can be combined or disassembled with the machine for easy transportation and assembly. Riveting speed can be easily controlled by Fluid path-way valve. The workbench is equipped with long stroke screw lift system and made convenience for the adjustment of the machine. As a result of the above function and orbital design, the riveting operation goes with ease and the workpiece finishing is created smoothly.

Specification:

▲Max riveting diameter Ф 16mm (solid steel rivet )

▲Max riveting pressure 34Kn

▲Stroke Length Range 30mm

▲Available work space 200mm

▲Throat depth 195mm

▲Riveting tool length 62mm

▲Eccentric angle 4°

▲Motive force Hydraulic

▲Oil-tank volume 60 Liters

▲Pressure oil brand 46# ISO

▲Area of the table surface 350mm×285mm

▲Power 2.2Kw

▲Physical size 850mm×600mm×1650mm

▲Net weight 570Kg
